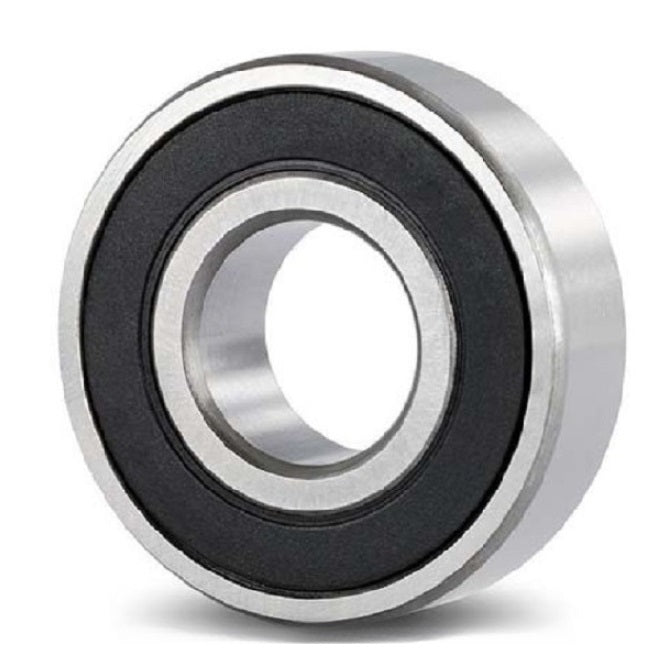

S6203-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
17.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.669 in.) - OD (D)
40.00
mm
+ 0.000 / - 0.011
(Equiv. 1.575 in.) - Width (B)
12.000
mm
+ 0.000 / - 0.125
(Equiv. 0.472 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6203
- Limiting Speed 11560
- Cage Type Rivetted
- Static Load Rating KGf 491
- Dynamic Load Rating KGf 976
- Radii 0.60 mm
- Inner Shoulder (UI) 24.90mm
- Outer Shoulder (UO) 35.80 mm
- Number of Balls 8
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- A.M Sachs - 4.2 All Models - Bearing 17-40-12mm
Cross References
- 6153K77
- Stainless 62032RS
- Stainless 6203-2RS
- Similar Part 6203HDDU
- Similar Part 6203HVV
- Stainless 6203RS
- Stainless 6203-RS
- IKS SS6203-2RS
- IKS SS6203-RS
- ADR W6203-2RS
- ADR W6203-RS
- W62032RS
- W6203RS
- S6203-RS-FD
- S6203RSFD
- S6203-2RS-FD
- S62032RSFD
- SS6203-2RS-FD
- SS62032RSFD
- SS6203RS
- SS6203RSFD
- SS6203-RS-FD
- 6203H-VV
- 6203H-RS
- 6203H-2RS
- 6203H2RS
- 6203H-DDU
- 6203HRS
- 6203 Basic Size Ref
