6003A-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

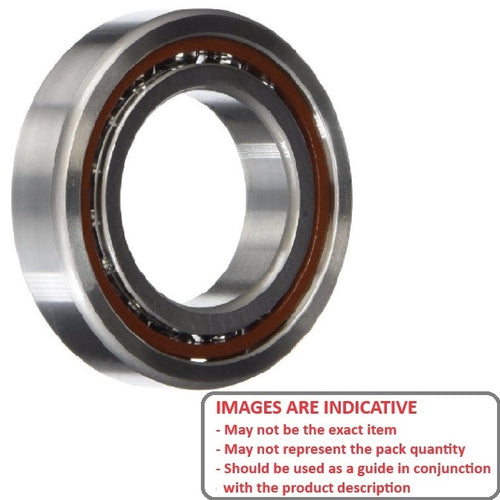

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

Non ISO Width. High speed polyamide cage. Ceramic balls.

ID (d) : 17.000 mm
(Equiv. 0.669 in.)
OD (D) 35.000 mm
(Equiv. 1.378 in.)
Width (B) 8.000 mm
(Equiv. 0.315 in.)
Precision Grade Economy
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 6003A
Limiting Speed 31920
Cage Type Polyamide
Static Load Rating KGf 199.1
Dynamic Load Rating KGf 355.7
Radii Undefined mm
Inner Shoulder (UI) Undefinedmm
Outer Shoulder (UO) Undefined mm
Number of Balls Undefined
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
GMS - 61 Ring - 40 - Rear Bearing 17-35-8mm
GMS - 61 Ring - 47 - Rear Bearing 17-35-8mm
GMS - 76 Ring - 47 - Rear Bearing 17-35-8mm
Magnum Power - Pro - 45 - Rear Bearing 17-35-8mm
Magnum Power - XLS 91A - 46 - Rear Bearing 17-35-8mm
Mutunuc - Taiwan - 12 - Rear Bearing 17-35-8mm
OS - FR5 5Cylinder 4C - 40 - Rear Bearing 17-35-8mm
OS - FR5 5Cylinder 4C - 60 - Rear Bearing 17-35-8mm
OS - FSR - 50 - Rear Bearing 17-35-8mm
OS - FSR - 60 - Rear Bearing 17-35-8mm
OS - FSR RC LS - 61 - Rear Bearing 17-35-8mm
OS - FT Twin RC 4C - 160 - Rear Bearing 17-35-8mm
OS - FT Twin RC 4C - 240 - Rear Bearing 17-35-8mm
OS - FX - 40 - Rear Bearing 17-35-8mm
OS - FX - 46 - Rear Bearing 17-35-8mm
OS - HWC - 60 - Rear Bearing 17-35-8mm
OS - RF ABC LS - 40 - Rear Bearing 17-35-8mm
OS - RF-HS - 61 - Rear Bearing 17-35-8mm
OS - RF-P Hanno Special - 61 - Rear Bearing 17-35-8mm
OS - RX-H - 140 - Rear Bearing 17-35-8mm
OS - RX-HGL - 61 - Rear Bearing 17-35-8mm
OS - SF - 46 - Rear Bearing 17-35-8mm
OS - SF ABC - 61 - Rear Bearing 17-35-8mm
OS - SF Ring - 46 - Rear Bearing 17-35-8mm
OS - SF-H ABC RC LS - 61 - Rear Bearing 17-35-8mm
OS - SF-H RC LS - 46 - Rear Bearing 17-35-8mm
OS - SF-HS - 61 - Rear Bearing 17-35-8mm
OS - SFN-H RC With 7H - 46 - Rear Bearing 17-35-8mm
OS - SF-P - 46 - Rear Bearing 17-35-8mm
OS - SX-H - 50 - Rear Bearing 17-35-8mm
OS - SX-H Ring - 61 - Rear Bearing 17-35-8mm
OS - SX-H Ring C Spec - 91 - Rear Bearing 17-35-8mm
OS - SX-H Ring C Spec With Pump - 91 - Rear Bearing 17-35-8mm
OS - SX-HGL WC - 50 - Rear Bearing 17-35-8mm
OS - SZ-H - 37 - Rear Bearing 17-35-8mm
OS - SZ-H - 70 - Rear Bearing 17-35-8mm
OS - VF - 12 - Rear Bearing 17-35-8mm
OS - WC - 21 - Rear Bearing 17-35-8mm
Saito - 160 - 120 - Rear Bearing 17-35-8mm
Saito - 160 - 130 - Rear Bearing 17-35-8mm
Saito - 82 All Models - Rear Bearing 17-35-8mm
Saito - FA 125 - 90 - Rear Bearing 17-35-8mm
Saito - FA 125 - 91 - Rear Bearing 17-35-8mm
Saito - FA 90 - Rear Bearing 17-35-8mm
Saito - FA180 - 100 - Rear Bearing 17-35-8mm
Saito - FA180 - 91 - Rear Bearing 17-35-8mm
Saito - S Goldhead - 45 - Rear Bearing 17-35-8mm
Saito - S Goldhead - 50 - Rear Bearing 17-35-8mm
Super Tigre - G - 45 - Rear Bearing 17-35-8mm
Super Tigre - G - 60 - Rear Bearing 17-35-8mm
Super Tigre - G61 ABC - 51 - Rear Bearing 17-35-8mm
Super Tigre - G61 Ring - 51 - Rear Bearing 17-35-8mm
Super Tigre - G75 Ring - 61 - Rear Bearing 17-35-8mm
Super Tigre - G90 Ring New Version - 61 - Rear Bearing 17-35-8mm
Thunder Tiger - EK4 - 15 - Rear Bearing 17-35-8mm
Thunder Tiger - H - 12 - Rear Bearing 17-35-8mm
Thunder Tiger - Pro - 46 - Rear Bearing 17-35-8mm
Thunder Tiger - Pro - 61 - Rear Bearing 17-35-8mm
Thunder Tiger - Pro H - 39 - Rear Bearing 17-35-8mm
Thunder Tiger - Pro H BB - 50 - Rear Bearing 17-35-8mm
Webra - 40 All Models - Rear Bearing 17-35-8mm
YS - 80 - 91 - Rear Bearing 17-35-8mm
YS - 80 ST - 80 - Rear Bearing 17-35-8mm
YS - Old - 10 - Rear Bearing 17-35-8mm
YS - ST H - 120 - Rear Bearing 17-35-8mm
YS - ST2 61 Heli - 61 - Rear Bearing 17-35-8mm
YS - ST4 91 Heli - 61 - Rear Bearing 17-35-8mm

Cross References

BOCA MR16003C-TH9
6003A
MR16003CTH9
6003A Basic Size Ref
