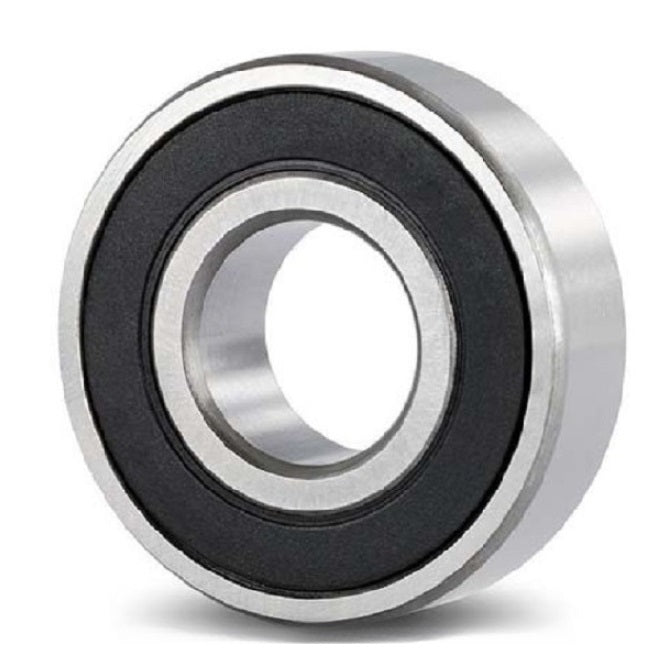

6903-2RS - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
17.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.669 in.) - OD (D)
30.000
mm
+ 0.000 / - 0.010
(Equiv. 1.181 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6903
- Limiting Speed 15640
- Cage Type Standard
- Static Load Rating KGf 262
- Dynamic Load Rating KGf 468
- Radii 0.30 mm
- Inner Shoulder (UI) 21.00mm
- Outer Shoulder (UO) 27.80 mm
- Number of Balls 11
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- HPI - Baja 5B - Bearing 17-30-7mm
Cross References
- 5972K289
- WIB 61903-2RSR
- WIB 61903-RSR
- Sealed 6903 / 7
- Nachi 6903-2NSECM
- KSK 6903-2RS
- NTN 6903LLU
- KSK 6903-RS
- FAFNIR 9303PP
- 6903RS
- 6903-DDU
- 6903DDU
- 6903RSKSK
- 69032NSECM
- 6903-VV
- 6903VV
- 69032RSKSK
- 6903-RS-KSK
- 6903-2RS-KSK
- 619032RSR
- 61903RSR
- 6903 Basic Size Ref
