W1700-FP-200-0350-S4 - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • ID (d) : 170.000 mm + 0.145 / + 0.545
    (Equiv. 6.693 in.)
  • OD (D) 200.000 mm - 0.170 / - 0.630
    (Equiv. 7.874 in.)
  • Length (L) 3.500 mm + 0.000 / - 0.080
    (Equiv. 0.138 in.)
  • Precision
  • 170.145
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • W1700FP200035CH-SS
  • W1700FP200035CHSS
View full details

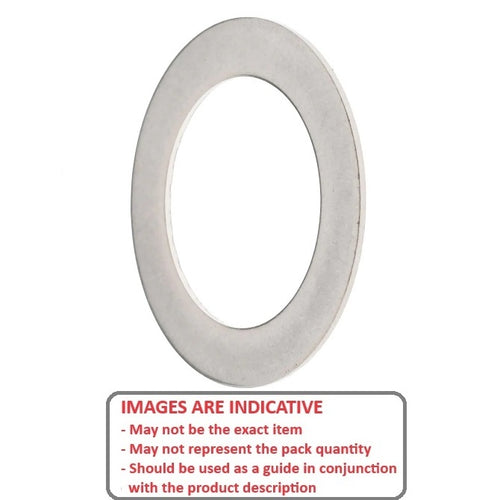

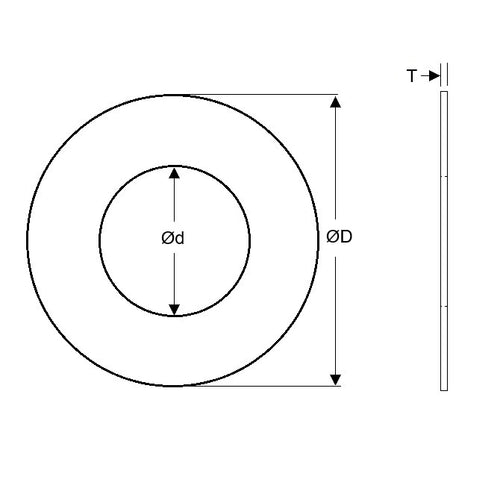

W1700-FP-200-0350-S4DiagramW1700-FP-200-0350-S4Image
