COL-01746-032-14-CZ - Datasheet
MBA
Category Information

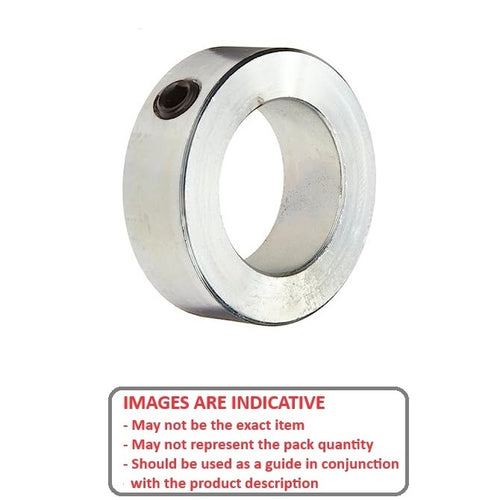

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
17.463
mm
+ 0.051 / - 0.000
(Equiv. 0.688 in.) - Outside Diameter (D)
31.80
mm
(Equiv. 1.252 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Screw Size 5/16-18 x 1/4
- Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K24
- NoCor SC-0687-ZC
- SC0687ZC
- A7C214022
- A7C2-14022
