COL-01746-032-14-S3 - Datasheet
MBA
Category Information

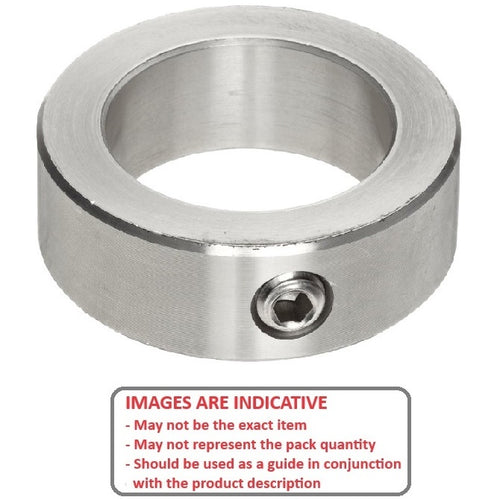

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
17.463
mm
(Equiv. 0.688 in.) - Outside Diameter (D)
31.80
mm
(Equiv. 1.252 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Screw Size 5/16-18 x 1/4
- Collar Style Plain Collar
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 6462K24
- A7X2-14022
- A7X214022
