Miniature Bearings Australia

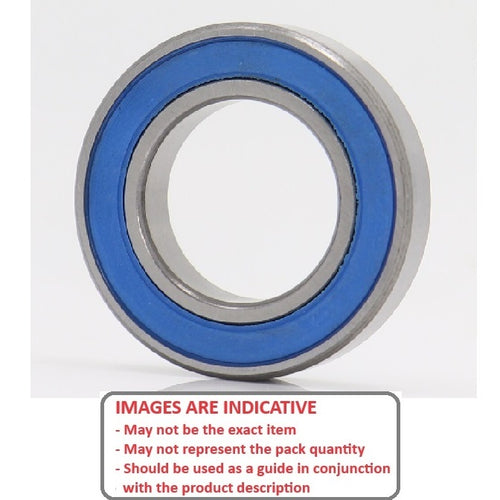

MR3516-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
16.000
mm
(Equiv. 0.63 in.) - OD (D)
35.000
mm
(Equiv. 1.378 in.) - Width (B)
11.000
mm
(Equiv. 0.433 in.) - Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR3516
- Limiting Speed 17100
- Cage Type Standard
- Static Load Rating KGf 363.8
- Dynamic Load Rating KGf 740
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- BCA 202CC16
- KSK 202KDD6
- KSK 6202-16
- KSK 6202-16mm-2RS
- WTW 6202-16mm-2RS
- KSK 6202-16mm-RS
- WTW 6202-16mm-RS
- Sealed MR3516 / 11
- BOCA MR6202-2RS-16
- BOCA MR6202-RS-16
- MR620RS16
- MR62022RS16
- MR6202RS16
- 620216mmRS
- 620216mm2RS
- MR3516 Basic Size Ref
