DT1015RS - Datasheet
MBA
Category Information

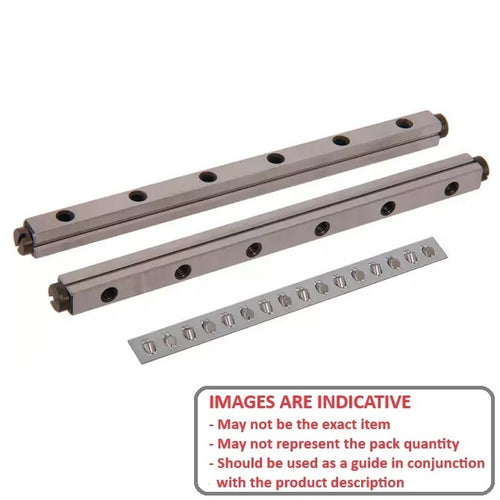

Slides - Linear - Cross Roller RailCross Roller Rail Linear Slides. Compact, precision bearings that can support and guide high loads with high accuracy and repeatability, low friction, and low starting force.
- Each consists of a pair of hardened steel ways containing 90 deg V grooves and a row of alternately crossed cylindrical rollers.
- Installed faced to face on smooth flat and accurately parallel, coplanar or perpendicular surfaces.
- Lubrication required, light grease for low speeds to continuous oil bath/mist for high speeds.
Product Data
- Number of Rollers : 16.00
- Length
90.02
mm
(Equiv. 3.544 in.) - Travel Length
50.01
mm
(Equiv. 1.969 in.) - No. Of Holes 6.00
- Load 95.71 Kg

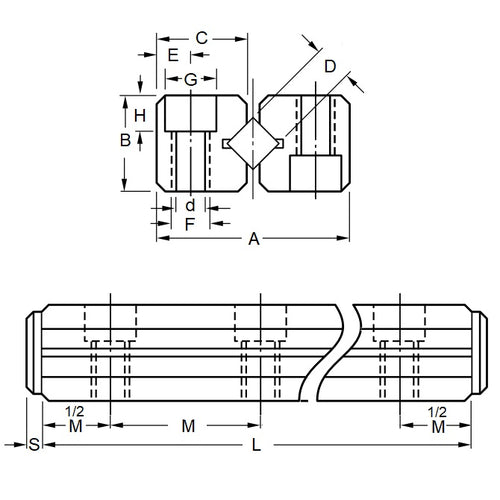

- Rail Diamentions (A/B/C) 12.01 / 5.99 / 5.51 mm
- D 2.01 mm
- Bolt to suit (F) M3 (3x0.5mm)
- Spacing between Bolts (M) 15.01 mm
- More Information For more information please contact us
Product Compliance and Data
Additional Resources
Cross References
- DT-1015
- DT1015
