SLQ-1600-2419-08255-T - Datasheet
MBA
Category Information

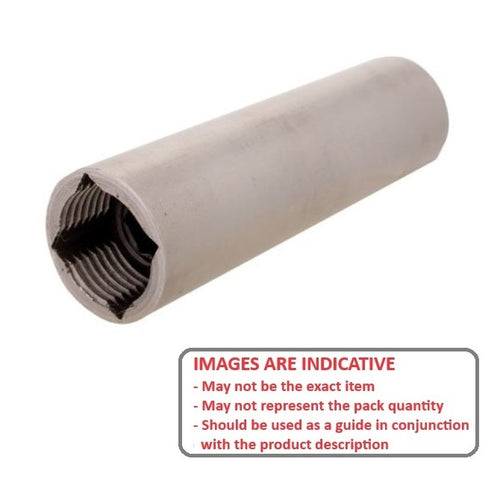

Sleeves - Square Hole - Threaded - Carbon SteelCarbon Steel Threaded Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Round OD with with a uniform square hole all the way through and threaded internally at one end.
Product Data

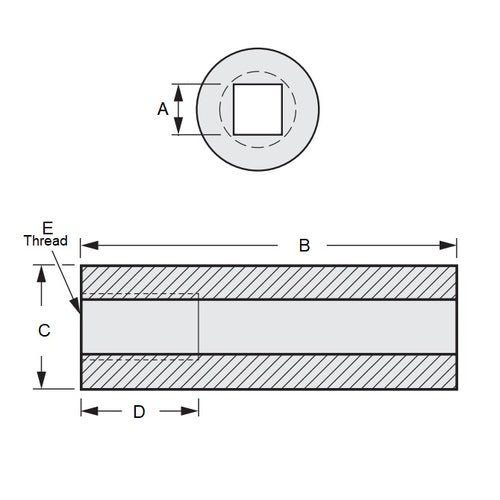

- Nominal Square Size
:
16.002
mm
+/- 0.0254
(Equiv. 0.63 in.) - Outside Diameter (C)
24.194
mm
(Equiv. 0.953 in.) - Length (B)
82.550
mm
(Equiv. 3.25 in.) - Actual Square Size (A) 15.875 mm
- Thread Depth (D) 25.400 mm
- Thread Size 3/4-16 UNF
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- SHSG-62
- SHSG62
