REM-160-L-CB - Datasheet
MBA
Category Information

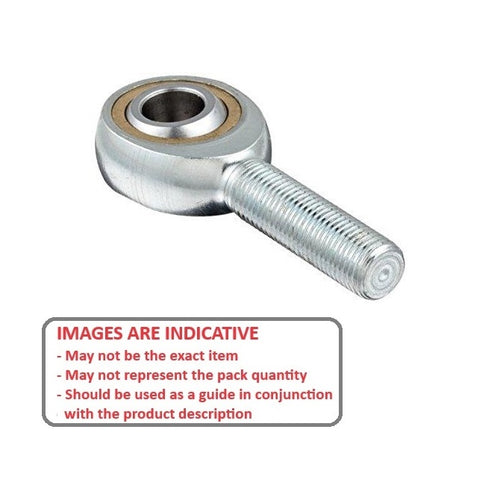

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1) : 16.00 mm
- Overall Length (L) 85.00 mm
- Thread Size M16x2 Left
- Min. Thread Length (l2) 40.00 mm
- Head Width (W) 15.00 mm
- Eye Width (W1) 21.00 mm
- Head Diameter (D) 38.00 mm
- Centre Height (l1) 66.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO® BEM-16-LH
- Misumi® E-GYWL16
- ASAHI® JAM16L
- KWK KM16L
- IKO POS16L
- Nachi® POS-16L
- NTN® SMI-16L
- BEM16LH
- EGYWL16
- SMI16L
