P-020G-015-030FH-AL-G-048 - Datasheet
MBA
Category Information

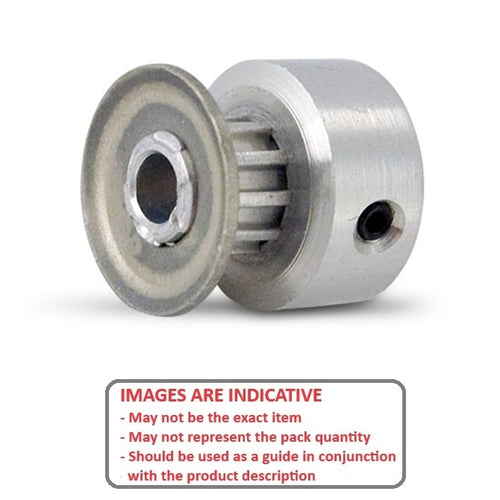

Pulleys - Metric Timing - 2.000mm Pitch - GT - 3mm Wide3mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 2mm Pitch Timing Belts.Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Finished Bores with Set Screws
Product Data
- Number of Teeth : 15
- Max Belt Width
3.00
mm
(Equiv. 0.118 in.) - Bore (d)
4.763
mm
(Equiv. 0.188 in.) - Bore Type Finished
- Locking Type Set Screw

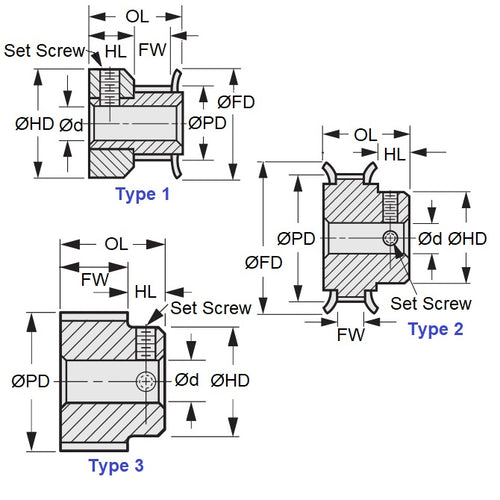

- Type 1
- Pitch Dia. (PD) 9.55 mm
- Flange Diameter (FD) 15.0 mm
- Overall Length 11.1 mm
- Hub Diameter (HD) 15.0
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 15-2P03-6CA2
- 152P036CA2
- A6A51015DF0306
- A6A51-015DF0306
