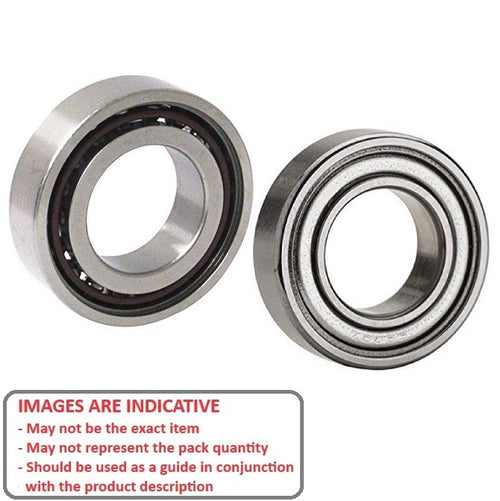

6202-Z-T9H-ACO-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data

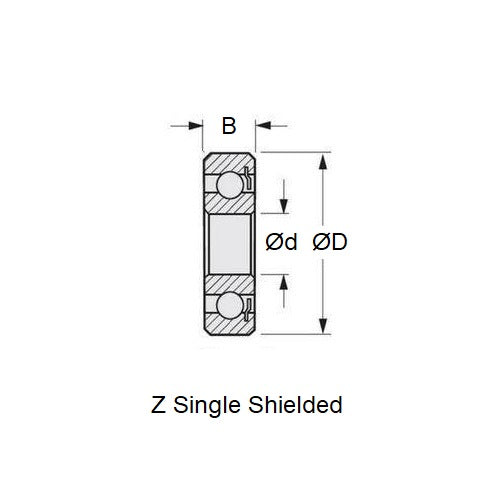

- ID (d)
:
15.000
mm
(Equiv. 0.591 in.) - OD (D)
35.000
mm
(Equiv. 1.378 in.) - Width (B)
11.000
mm
(Equiv. 0.433 in.) - Precision Grade Economy
- Closure Type Z
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name ACO Anti Corrosion Oil Film
- Basic Part 6202
- Limiting Speed 36480
- Cage Type Polyamide
- Static Load Rating KGf 363.8
- Dynamic Load Rating KGf 740
- Radii 0.60 mm
- Inner Shoulder (UI) 21.70mm
- Outer Shoulder (UO) 31.40 mm
- Number of Balls 8
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Z
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- A.M Sachs - 3.2 - Front Bearing
- A.M Sachs - 3.2 - Rear Bearing 15-35-11mm
- Aerrow-Quadra - 100 - 2 Stroke - Front Bearing
- Aerrow-Quadra - 50 - 2 Stroke - Front Bearing
- Aerrow-Quadra - 50 - 2 Stroke - Rear Bearing 15-35-11mm
- Aerrow-Quadra - 52 - 2 Stroke - Front Bearing
- Aerrow-Quadra - 52 - 2 Stroke - Rear Bearing 15-35-11mm
- Enya - 120GP - Rear Bearing 15-35-11mm
- Enya - R120 - 4 Stroke - Rear Bearing 15-35-11mm
- Enya - R90 - 4 Stroke - Rear Bearing 15-35-11mm
- OPS - 90 - Rear Bearing 15-35-11mm
- Picco - 90 Marine - 2 Stroke - Rear Bearing 15-35-11mm
- Zenoah - G62 - Front and Rear Bearing
Cross References
- WIB 6202-Z-T9H-C3WWAF2
- WIB 6202-Z-T9H-C3-WW-AF2
- 6202ZT9HC3WWAF2
- 6202T9HZACOECO
- 6202 Basic Size Ref
