6002-Z-C3-T9H-AF12 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

ID (d) : 15.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.591 in.)
OD (D) 32.000 mm _{+ 0.000 / - 0.011}
(Equiv. 1.26 in.)
Width (B) 9.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.354 in.)
Precision Grade Abec 1
Closure Type Z
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Oil
Lubrication Name AF12 Aeroshell Fluid 12
Basic Part 6002
Limiting Speed 43200
Cage Type Polyamide
Static Load Rating KGf 290
Dynamic Load Rating KGf 570
Radii 0.30 mm
Inner Shoulder (UI) Undefinedmm
Outer Shoulder (UO) Undefined mm
Number of Balls 9
Clearance C3 (11 to 25)
Precision Grade Abec 1
Closure Type Z
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
CMB - 21 - Rear Bearing 15-32-9mm
CMB - 60 All Models - Rear Bearing 15-32-9mm
CMB - 65 - 67 - Rear Bearing 15-32-9mm
CMB - 65 All Models - Rear Bearing 15-32-9mm
CMB - 67 All Models - Rear Bearing 15-32-9mm
CMB - 80 - Rear Bearing 15-32-9mm
CMB - 90 - Rear Bearing 15-32-9mm
CMB - CAM - 65 - Rear Bearing 15-32-9mm
CMB - CAM 67 - CAM 80 - Rear Bearing 15-32-9mm
CMB - CAM Marine - 45 - Rear Bearing 15-32-9mm
CMB - H Racing - Green Head - 65 - Rear Bearing 15-32-9mm
Enya - 120 - 4 Stroke - Rear Bearing 15-32-9mm
Enya - 2C 733 - 46 - Rear Bearing 15-32-9mm
Enya - 4C - 80 - Rear Bearing 15-32-9mm
Enya - 4C - Old - 40 - Rear Bearing 15-32-9mm
Enya - 60 - 2 Stroke 733 - Rear Bearing 15-32-9mm
Enya - 90 - 4 Stroke - Rear Bearing 15-32-9mm
Enya - III - 35 - Rear Bearing 15-32-9mm
Fox - 0.15 - Rear Bearing 15-32-9mm
HB - 50 All Models - Rear Bearing 15-32-9mm
HB - 61 - 2 Stroke - Rear Bearing 15-32-9mm
K.B - 11 New Inboard - Rear Bearing 15-32-9mm
K.B - 40 All Models - Rear Bearing 15-32-9mm
K.B - 48 All Models - Rear Bearing 15-32-9mm
K.B - 67 -82 New - Rear Bearing 15-32-9mm
K.B - IB - 7.5 - Rear Bearing 15-32-9mm
K.B - Inboard - 3.5 - Rear Bearing 15-32-9mm
K.B - Inboard Marine Late Model - 67 - Rear Bearing 15-32-9mm
K.B - Inboard Marine Late Model - 82 - Rear Bearing 15-32-9mm
Kraft - 61 - 67 - Rear Bearing 15-32-9mm
Mac - 45 All Models - Rear Bearing 15-32-9mm
Mac - 67 - Rear Bearing 15-32-9mm
Mac - 84 - Rear Bearing 15-32-9mm
Magnum Power - 120 4 Stroke - 21 - Rear Bearing 15-32-9mm
MVVS - 21 All Models - Rear Bearing 15-32-9mm
MVVS - Twin - 40 - Rear Bearing 15-32-9mm
OS - 60 H Old - Rear Bearing 15-32-9mm
OS - 90 RR-M ABC RC MAR - Rear Bearing 15-32-9mm
OS - FS FI Surpass II - 70 - Rear Bearing 15-32-9mm
OS - FS II Surpass With Pump 91 - Rear Bearing 15-32-9mm
OS - FS RC Surpass 4C - 40 - Rear Bearing 15-32-9mm
OS - FS Supercharge - 120 - Rear Bearing 15-32-9mm
OS - FS Supercharge - 61 - Rear Bearing 15-32-9mm
OS - FS Surpass II 4C - 12 - Rear Bearing 15-32-9mm
OS - FS Surpass RC 4C 91 - 40 - Rear Bearing 15-32-9mm
OS - FS Surpass RC 4C 91 - 48 - Rear Bearing 15-32-9mm
OS - FS-120 II Surpass - 91 - Rear Bearing 15-32-9mm
OS - FS-120 Non Surpass - 91 - Rear Bearing 15-32-9mm
OS - FS-120 Surpass III With Pump - Rear Bearing 15-32-9mm
OS - FS-120E Surpass - Rear Bearing 15-32-9mm
OS - FS120S - 4 Stroke - Rear Bearing 15-32-9mm
OS - FS120S III - 4 Stroke - Rear Bearing 15-32-9mm
OS - FS120S-SP - 4 Stroke - Rear Bearing 15-32-9mm
OS - FS91S - 4 Stroke - Rear Bearing 15-32-9mm
OS - FSR-M ABC RC - 61 - Rear Bearing 15-32-9mm
OS - FT Twin RC 4C - 120 - Rear Bearing 15-32-9mm
OS - FT Twin RC 4C - 160 - Rear Bearing 15-32-9mm
OS - FT240 -FT300 TW RC - 4 Stroke - Front Bearing 15-32-9mm
OS - H Old - 40 - Rear Bearing 15-32-9mm
OS - H Old - 46 - Rear Bearing 15-32-9mm
Picco - 90 Hydro - 2 Stroke - Rear Bearing 15-32-9mm
Picco - Hydro - 45 - Rear Bearing 15-32-9mm
Rossi - 90 - Rear Bearing 15-32-9mm
Rossi - New Marine - 21 - Rear Bearing 15-32-9mm
Thunder Tiger - F91 - 2 Stroke - Rear Bearing 15-32-9mm
Thunder Tiger - SF - 120 - Rear Bearing 15-32-9mm
Thunder Tiger - SF - 61 - Rear Bearing 15-32-9mm

Cross References

BOSCH 2600905017
SUHNER 2769723
GRW 6002-Z-C3GPRTN9HOil
WIB 6002-Z-T9H-C3WWAF2
WIB 6002-Z-TNH-7-14
WIB 6002-Z-TNH-P6-C3
6002ZTNH714
6002ZT9HC3WWAF2
6002T9HZC3AF12
6002ZC3GPRTN9HOil
6002ZTNHP6C3
6002 Basic Size Ref

View full details

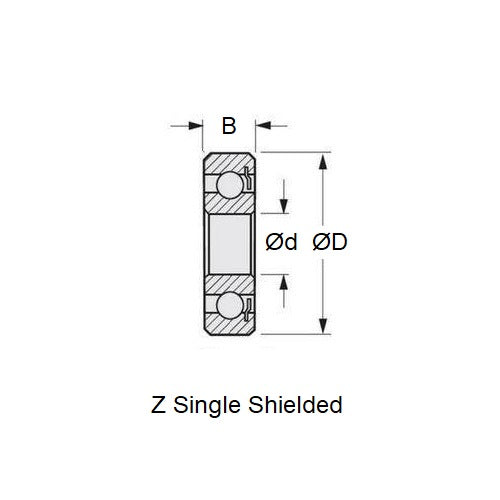

6002-Z-C3-T9H-AF12Diagram

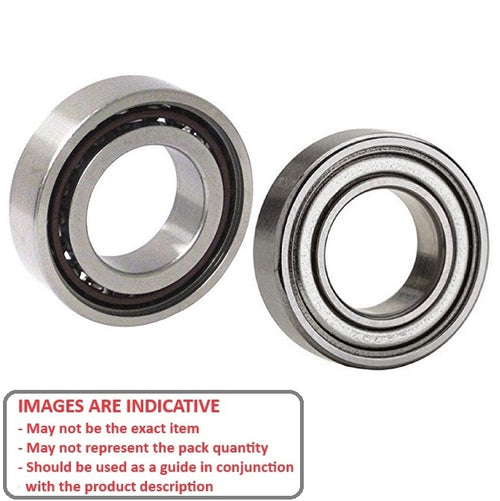

6002-Z-C3-T9H-AF12Image
