6002A-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

Open economy ceramic-hybrid bearing with a high speed polyamide retainer

  • ID (d) : 15.000 mm
  • O.D. (D) 32.000 mm
  • Width (B) 8.000 mm
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6002A
  • Limiting Speed 36480
  • Cage Type Polyamide
  • Static Load Rating KGf 244.2
  • Dynamic Load Rating KGf 483.6
  • Radii 0.30 mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls 9
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP® - 4C - 80 - Replacement Rear Bearing
  • ASP® - 80 - Replacement Rear Bearing
  • HB - 40 DP - 2 Stroke - Replacement Rear Bearing
  • HB - PDP New - 50 - Replacement Rear Bearing
  • HP - 30 Old Models Except GoldSilver - Replacement Rear Bearing
  • HP - 61 - Replacement Rear Bearing
  • HP - 61 Old 1975 - Replacement Rear Bearing
  • HP - Old/1975 - 40 - Replacement Rear Bearing
  • Kalistratov® - K - 45 - Replacement Rear Bearing
  • Kalistratov® - K - 96 - Replacement Rear Bearing
  • Magnum Power® - FS-AR 4C - 28 - Replacement Rear Bearing
  • Magnum Power® - FS-AR 4C - 46 - Replacement Rear Bearing
  • Magnum Power® - XL 120 RFS - 61 - Replacement Rear Bearing
  • Magnum Power® - XL 120-AR II - 75 - Replacement Rear Bearing
  • Magnum Power® - XL 91 RFS - 30 - Replacement Rear Bearing
  • Magnum Power® - XL 91 RFS - 80 - Replacement Rear Bearing
  • Magnum Power® - XL70RFS - 30 - Replacement Rear Bearing
  • Magnum Power® - XL70RFS - 91 - Replacement Rear Bearing
  • Moki® - Marine - 15 - Replacement Rear Bearing
  • MVVS - 21 All Models - Replacement Rear Bearing
  • MVVS - 61 -77 - Replacement Rear Bearing
  • MVVS - 61 All Models - Replacement Rear Bearing
  • MVVS - GFS/R-ABC-RC - 40 - Replacement Rear Bearing
  • OPS - Old - 80 - Replacement Rear Bearing
  • OS Engines® - FS - 40 - Replacement Rear Bearing
  • OS Engines® - FS 70 II Surpass - 40 - Replacement Rear Bearing
  • OS Engines® - FS 70 Surpass RC 4C - 20 - Replacement Rear Bearing
  • OS Engines® - FS RC 4C - 91 - Replacement Rear Bearing
  • OS Engines® - FS61 - 4 Stroke MAR - Replacement Rear Bearing
  • OS Engines® - FS70 II - 4 Stroke - Replacement Rear Bearing
  • OS Engines® - FS70S - 4 Stroke - Replacement Rear Bearing
  • Picco® - 67 EXR - 2 Stroke - Replacement Rear Bearing
  • Picco® - 67 EXR Series II - 2 Stroke - Replacement Rear Bearing
  • Picco® - Blue Head - F1 - Replacement Rear Bearing
  • Picco® - Blue Head - Q500 - Replacement Rear Bearing
  • Picco® - EXR - Q500 - Replacement Rear Bearing
  • Picco® - EXR New Late - 67 - Replacement Rear Bearing
  • Picco® - EXR Old 1995 - 80 - Replacement Rear Bearing
  • PIP Marine - A45 - 28 - Replacement Rear Bearing
  • RJL - 60 - Replacement Rear Bearing
  • RJL - 7 All Models - Replacement Rear Bearing
  • Rossi® - 3.5 - Replacement Rear Bearing
  • Rossi® - 90 Old - Replacement Rear Bearing
  • Rossi® - DF - 21 C - Replacement Rear Bearing
  • Rossi® - Old Marine - 90 - Replacement Rear Bearing
  • Russian® - K - 45 - Replacement Rear Bearing
  • Super Tigre® - G - 29 - Replacement Rear Bearing
  • Super Tigre® - G60 - Replacement Rear Bearing
  • Super Tigre® - Marine - 45 - Replacement Rear Bearing
  • Super Tigre® - ST - 45 - Replacement Rear Bearing
  • Super Tigre® - ST - 51 - Replacement Rear Bearing
  • Super Tigre® - ST K - 56 - Replacement Rear Bearing
  • Super Tigre® - ST K - 60 - Replacement Rear Bearing
  • Super Tigre® - ST Old - 51 - Replacement Rear Bearing
  • Super Tigre® - ST Old - 56 - Replacement Rear Bearing
  • Super Tigre® - ST51 - Replacement Rear Bearing
  • Super Tigre® - ST60 RC - Replacement Rear Bearing
  • Super Tigre® - ST-60K - CL RC W-Muffler - Replacement Rear Bearing
  • Super Tigre® - X - 21 - Replacement Rear Bearing
  • Super Tigre® - X - 40 - Replacement Rear Bearing
  • Trophy® - 61 Pro Old - 3.3 - Replacement Rear Bearing
  • Webra® - 61 Blackhead - Replacement Rear Bearing
  • Webra® - Blackhead - 60 - Replacement Rear Bearing
  • YS - 45 All Models - Replacement Rear Bearing
  • YS - Air Chamber - 61 - Replacement Rear Bearing
  • YS - FZ 10 - 91 - Replacement Rear Bearing

Cross References

  • 6002A
  • 6002A Basic Size Ref
View full details

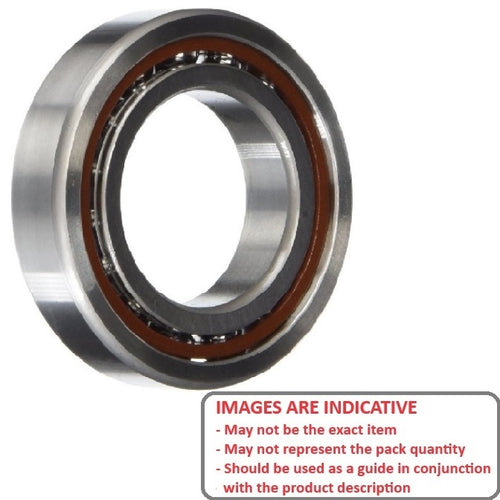

6002A-T9H-ECODiagram6002A-T9H-ECOImage
