6002A-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

Non ISO Width. High speed polyamide cage. Ceramic balls.

  • ID (d) : 15.000 mm
    (Equiv. 0.591 in.)
  • OD (D) 32.000 mm
    (Equiv. 1.26 in.)
  • Width (B) 8.000 mm
    (Equiv. 0.315 in.)
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6002A
  • Limiting Speed 36480
  • Cage Type Polyamide
  • Static Load Rating KGf 195.3
  • Dynamic Load Rating KGf 386.8
  • Radii 0.30 mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls 9
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 4C - 80 - Rear Bearing 15-32-8mm
  • ASP - 80 - Rear Bearing 15-32-8mm
  • HB - PDP New - 61 - Rear Bearing 15-32-8mm
  • HP - 30 Old Models Except GoldSilver - Rear Bearing 15-32-8mm
  • HP - 46 Old Models Except GoldSilver - Rear Bearing 15-32-8mm
  • HP - Old/1975 - 40 - Rear Bearing 15-32-8mm
  • HP - Old/1975 - 61 - Rear Bearing 15-32-8mm
  • Kalistratov - K - 45 - Rear Bearing 15-32-8mm
  • Magnum Power - FS-AR 4C - 28 - Rear Bearing 15-32-8mm
  • Magnum Power - XL 120 RFS - 61 - Rear Bearing 15-32-8mm
  • Magnum Power - XL 120-AR II - 75 - Rear Bearing 15-32-8mm
  • Magnum Power - XL 91 RFS - 30 - Rear Bearing 15-32-8mm
  • Magnum Power - XL70RFS - 91 - Rear Bearing 15-32-8mm
  • Moki - Marine - 40 - Rear Bearing 15-32-8mm
  • MVVS - 21 All Models - Rear Bearing 15-32-8mm
  • MVVS - GFS/R-ABC-RC - 40 - Rear Bearing 15-32-8mm
  • OPS - Old - 30 - Rear Bearing 15-32-8mm
  • OS - FS - 40 - Rear Bearing 15-32-8mm
  • OS - FS 70 II Surpass - 20 - Rear Bearing 15-32-8mm
  • OS - FS 70 II Surpass - 40 - Rear Bearing 15-32-8mm
  • OS - FS 70 Surpass RC 4C - 20 - Rear Bearing 15-32-8mm
  • OS - FS RC 4C - 40 - Rear Bearing 15-32-8mm
  • OS - FS RC 4C - 91 - Rear Bearing 15-32-8mm
  • Picco - Blue Head - Q500 - Rear Bearing 15-32-8mm
  • Picco - EXR - Q500 - Rear Bearing 15-32-8mm
  • Picco - EXR New Late - 67 - Rear Bearing 15-32-8mm
  • Picco - EXR Old 1995 - 80 - Rear Bearing 15-32-8mm
  • PIP Marine - A45 - 28 - Rear Bearing 15-32-8mm
  • RJL - 3.5 All Models - Rear Bearing 15-32-8mm
  • RJL - 7 All Models - Rear Bearing 15-32-8mm
  • Rossi - 3.5 - Rear Bearing 15-32-8mm
  • Rossi - Old Marine - 21 - Rear Bearing 15-32-8mm
  • Russian - K - 45 - Rear Bearing 15-32-8mm
  • Super Tigre - G - 29 - Rear Bearing 15-32-8mm
  • Super Tigre - Marine - 45 - Rear Bearing 15-32-8mm
  • Super Tigre - ST - 45 - Rear Bearing 15-32-8mm
  • Super Tigre - ST - 51 - Rear Bearing 15-32-8mm
  • Super Tigre - ST K - 60 - Rear Bearing 15-32-8mm
  • Super Tigre - ST Old - 56 - Rear Bearing 15-32-8mm
  • Super Tigre - X - 40 - Rear Bearing 15-32-8mm
  • Trophy - 61 Pro Old - 3.3 - Rear Bearing 15-32-8mm
  • Webra - Blackhead - 60 - Rear Bearing 15-32-8mm
  • YS - 45 All Models - Rear Bearing 15-32-8mm
  • YS - Air Chamber - 61 - Rear Bearing 15-32-8mm
  • YS - FZ 10 - 120 - Rear Bearing 15-32-8mm
  • YS - FZ 10 - 91 - Rear Bearing 15-32-8mm

Cross References

  • BOCA MR16002C-TH9-C3
  • 6002A
  • MR16002CTH9C3
  • 6002A Basic Size Ref
View full details

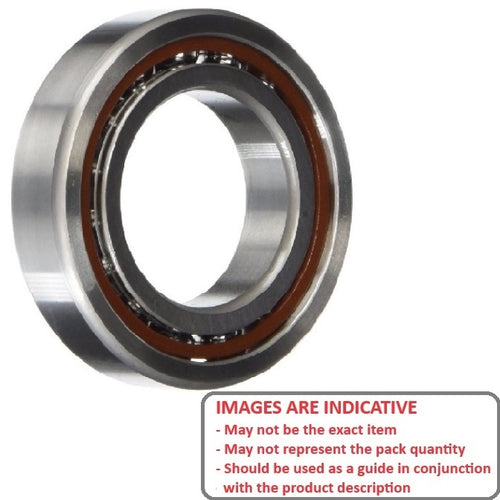

6002A-CSN-T9H-ECODiagram6002A-CSN-T9H-ECOImage
