Miniature Bearings Australia
S6902-ZZ-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Double shielded economy stainless steel bearing

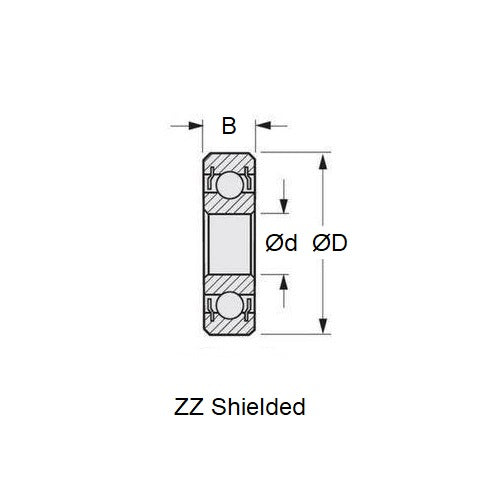

- ID (d) : 15.000 mm
- O.D. (D) 28.000 mm
- Width (B) 7.000 mm
- Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6902
- Limiting Speed 24700
- Cage Type Standard
- Static Load Rating KGf 219.4
- Dynamic Load Rating KGf 419
- Radii 0.30 mm
- Inner Shoulder (UI) 18.80mm
- Outer Shoulder (UO) 25.30 mm
- Number of Balls 10
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- ASP® - 40 All Models - Bearing
- ASP® - 46 All Models - Bearing
- Bluebird® - 2C - 21 - Bearing
- CEN - NX-76 - 40CC - Bearing
- Combat Special Marks® - 3 - 21 - Bearing
- Combat Special Marks® - 4 - 21 - Bearing
- Combat Special Marks® - 6 - 21 - Bearing
- Como® - 40 All Models - Bearing
- Como® - All Models - Bearing
- Enya® - 2C - 0.28 - Bearing
- Enya® - 2C SS - 60 - Bearing
- Enya® - 4CII - 120 - Bearing
- Enya® - 50CX - 120 - Bearing
- Enya® - CX - 35 - Bearing
- Enya® - CX - 45 - Bearing
- Enya® - SS - 120 - Bearing
- Enya® - SS - 90 - Bearing
- Enya® - SS40BB - 40 - Bearing
- Enya® - TVBB - 40 - Bearing
- Enya® - TVBB - 50 - Bearing
- Evolution® - 40 ALPHA - 60 - Bearing
- Evolution® - 40NT - 36 - Bearing
- Evolution® - 46NT - 40 - Bearing
- Fitzpatrick - 61 - Bearing
- Fitzpatrick - 61 - 46 - Bearing
- Fox® - 15 All Models - Bearing
- Fox® - Combat Special Marks 34 And 6 - 46 - Bearing
- Fox® - Quickie - 36 - Bearing
- Fox® - Quickie - 40 - Bearing
- Fox® - Quickie - 74 - Bearing
- GMS - 40 ABC - 25 - Bearing
- GMS - 47 ABC - 32 - Bearing
- Horizon® - Evolution - 40 - Bearing
- HP - Silver Star - 61 - Bearing
- Irvine® - SP ABC - 15 - Bearing
- K.B - Fire - 100 - Bearing
- K.B - IB Old - 7.5 - Bearing
- K.B - Inboard Early Model - 90 - Bearing
- K.B - Inboard Marine - 21 - Bearing
- K.B - Outboard Marine Early Model - 1.0 - Bearing
- Magnum Power® - 45 All Models - Bearing
- Magnum Power® - 4C - 21 - Bearing
- Magnum Power® - Pro - 36 - Bearing
- Magnum Power® - Pro - 80 - Bearing
- Magnum Power® - Pro SE - 45 - Bearing
- Magnum Power® - XL - 36 - Bearing
- Magnum Power® - XL - 40 - Bearing
- Magnum Power® - XL - 52 - Bearing
- Magnum Power® - XLS - 32 - Bearing
- Magnum Power® - XLS - 36 - Bearing
- Magnum Power® - XLS52A - 46 - Bearing
- MDS - 38 All Models - Bearing
- MDS - 40 All Models - Bearing
- MDS - 46 All Models - Bearing
- MDS - 58 - .18 - Bearing
- MDS - 58 - 68 - Bearing
- MDS - Pro - 1.4 - Bearing
- MDS - Pro - 61 - Bearing
- Moki® - All - 61 - Bearing
- MVVS - GFR - 15 - Bearing
- MVVS - GFS - 40 - Bearing
- MVVS - Glow Engine - 1.5 - Bearing
- MVVS - GRRT - 40 - Bearing
- OS Engines® - ABC-P RC - 90 - Bearing
- OS Engines® - AX - .21 SB - Bearing
- OS Engines® - FPS - 70 - Bearing
- OS Engines® - FSR - 25 - Bearing
- OS Engines® - FSR - 40 - Bearing
- OS Engines® - FSR ABC - 91 - Bearing
- OS Engines® - FSR RC W-Muffler - 61 - Bearing
- OS Engines® - FSR RC W-Muffler - 91 - Bearing
- OS Engines® - FSRH - 90 - Bearing
- OS Engines® - FSR-H RC - 108 - Bearing
- OS Engines® - FSR-S W-Muffler - 50 - Bearing
- OS Engines® - FX - 160 - Bearing
- OS Engines® - FX - 25 - Bearing
- OS Engines® - FX-H Ring - 61 - Bearing
- OS Engines® - FXI - 91 - Bearing
- OS Engines® - H - 46 - Bearing
- OS Engines® - SF - 21 - Bearing
- OS Engines® - SF - 25 - Bearing
- OS Engines® - SF ABC RC - 61 - Bearing
- OS Engines® - SF RC W-Muffler - 40 - Bearing
- OS Engines® - SF RC W-Muffler - 61 - Bearing
- OS Engines® - SF Ring - 40 - Bearing
- OS Engines® - SF Ring - 46 - Bearing
- OS Engines® - SF-H RC - 61 - Bearing
- OS Engines® - SF-P - 61 - Bearing
- OS Engines® - SF-P Ring - 61 - Bearing
- OS Engines® - SF-S ABC W-Muffler - 46 - Bearing
- OS Engines® - SF-S ABC W-Muffler - 61 - Bearing
- OS Engines® - SR 2C Old - 46 - Bearing
- OS Engines® - SX - 40 - Bearing
- OS Engines® - SX-H - 50 - Bearing
- OS Engines® - SX-H Ring Hyper - 91 - Bearing
- Paw Diesel® - Diesel - 61 - Bearing
- Power Racing® - 46 - 21 - Bearing
- Rossi® - F3D Pylon - 81 - Bearing
- Rossi® - Marine - 40 - Bearing
- Royal® - 25 All Models - Bearing
- Royal® - 28 All Models - Bearing
- Royal® - Signature - 40 - Bearing
- Saito® - 130 - 56 - Bearing
- Saito® - 15 - Bearing
- Saito® - 270 All Models - Bearing
- Saito® - 30 All Models - Bearing
- Saito® - 82 - 100 - Bearing
- Saito® - FA 45 - Bearing
- Saito® - FA 50 - Bearing
- Saito® - FA 65 - Replacement Rear Bearing
- Saito® - FA 72 - 30 - Replacement Rear Bearing
- Saito® - FA 72 - 450 - Replacement Rear Bearing
- Saito® - FA 80 - Replacement Rear Bearing
- Saito® - FA 82A - 56 - Replacement Rear Bearing
- Saito® - FA 91S - 72 - Replacement Rear Bearing
- Super Tigre® - Bull Ring - 46 - Bearing
- Super Tigre® - G Sport W-Muffler - 91 - Bearing
- Super Tigre® - G51 Ring - 34 - Bearing
- Super Tigre® - GS40 Ring - 34 - Bearing
- Super Tigre® - GS45 ABC - 40 - Bearing
- Super Tigre® - S - 15 - Bearing
- Super Tigre® - S - 40 - Bearing
- Super Tigre® - SK - 18 - Bearing
- Thunder Tiger® - Pro - 25 - Bearing
- Thunder Tiger® - Pro - 36 - Bearing
- Thunder Tiger® - Pro H - 39 - Bearing
- Thunder Tiger® - Pro H - 90 - Bearing
- Tower® - 21 - Bearing
- Veco® - 61 Pro Old Models - Bearing
- Webra® - 61 FS Speed - 160 - Bearing
- Webra® - Quickee 500 - 32 - Bearing
- Webra® - Speed - 12 - Bearing
- Webra® - Speed - 120 - Bearing
- Webra® - Speed GT With TN II - 50 - Bearing
- YS - 61 All Models - Bearing
Cross References
- SS6902ZZECO 6902
- ISO 6902HZZ
- ISO 6902H-ZZ
- Stainless Alternative 6902ZZECO
- Stainless Alternative 6902-ZZ-ECO
- Misumi® C-SE6902ZZ
- Shielded S6902 / 7
- BOCA® SMR6902-ZZ
- Shielded SS6902 / 7
- BOCA® SSMR6902-ZZ
- ADR WAY15-ZZ
- SSMR6902ZZ
- CSE6902ZZ
- S6902-ZZ
- SS6902-ZZ
- WAY15ZZ
- 6902ZECO
- 6902-Z-ECO
- 6902 Basic Size Ref
