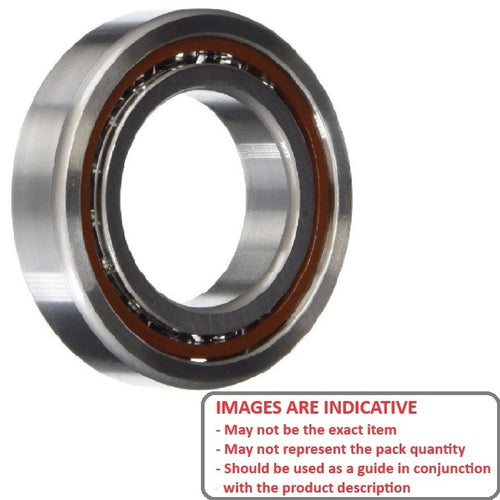

6902-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data
- ID (d)
:
15.000
mm
(Equiv. 0.591 in.) - OD (D)
28.000
mm
(Equiv. 1.102 in.) - Width (B)
7.000
mm
(Equiv. 0.276 in.) - Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6902
- Limiting Speed 39520
- Cage Type Polyamide
- Static Load Rating KGf 219.4
- Dynamic Load Rating KGf 419
- Radii 0.30 mm
- Inner Shoulder (UI) 18.80mm
- Outer Shoulder (UO) 25.30 mm
- Number of Balls 10
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Evolution - 40 ALPHA - 100 - Bearing
- Evolution - 40NT - 40 - Bearing
- Evolution - 46NT - 40 - Bearing
- Fitzpatrick - 61 - 46 - Bearing
- GMS - 40 ABC - 25 - Bearing
- GMS - 47 ABC - 32 - Bearing
- K.B - IB Old - 7.5 - Bearing
- K.B - Inboard Early Model - 90 - Bearing
- K.B - Inboard Marine - 21 - Bearing
- K.B - Outboard Marine Early Model - 1.0 - Bearing
- Moki - Marine - 120 - Bearing
- Moki - Marine - 2.1 - Bearing
- OS - 55AX - Rear Bearing
- Paw Diesel - Diesel - 61 - Bearing
- Rossi - F3D Pylon - 81 - Bearing
- Rossi - Marine - 21 - Bearing
- Saito - 82 - 120 - Bearing
- Saito - FA 82A - 72 - Rear Bearing 15-28-7mm
- Saito - FA 91S - 82 - Rear Bearing 15-28-7mm
- Thunder Tiger - Pro - 36 - Bearing
- Tower - 21 - Bearing
Cross References
- BOCA MR6902-THB-C3
- MR6902THBC3
- 6902 Basic Size Ref
