Miniature Bearings Australia
SMR2615A-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

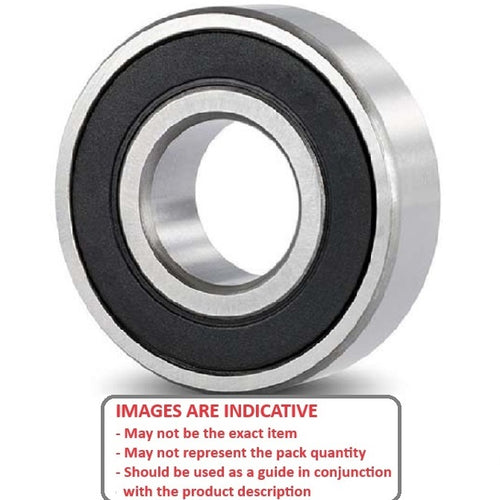

Double black rubber sealed economy stainless steel bearing
- ID (d) : 15.000 mm
- O.D. (D) 26.000 mm
- Width (B) 8.000 mm
- Precision Grade Economy
- Closure Type 2GS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR2615A
- Limiting Speed 9138.3
- Cage Type Standard
- Static Load Rating KGf 121.6
- Dynamic Load Rating KGf 200.4
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Pushbike Bearings
- Bicycle Hub - Popular - Replacement Bearing
Cross References
- Stainless Alternative MR2615A2RSECO
- Stainless Alternative MR2615A-2RS-ECO
- Stainless Alternative MR2615ARSECO
- Stainless Alternative MR2615A-RS-ECO
- Sealed Width A SMR2615 / 8
- BOCA® SMR2615-2GS-W8-C3-NB2
- Sealed SMR2615A / 8
- Sealed Width A SSMR2615 / 8
- BOCA® SSMR2615-2GS-W8-C3-NB2
- Sealed SSMR2615A / 8
- SSMR26152GSW8C3NB2
- MR2615A Basic Size Ref
