COL-01500-025-12-CZ - Datasheet
MBA
Category Information

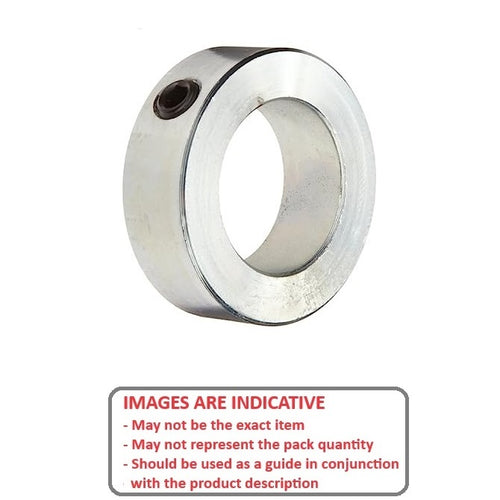

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
15.000
mm
(Equiv. 0.591 in.) - Outside Diameter (D)
25.00
mm
(Equiv. 0.984 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SCM-015-ZC
- SCM015ZC
