GAS44RS - Datasheet

MBA

Category Information

Gas Springs - Econoloc

Econoloc Gas Springs. Safety shroud gas struts eliminate the need for separate safety rods.

  • They positively lock when fully extended, protecting the operator from potential injury in the event of overload or misuse.
  • The shroud must be actively pressed to release the lock and ensures safety.

Product Data

  • Stroke (C) : 150.1 mm
    (Equiv. 5.909 in.)
  • Extended Length 363.98 mm
    (Equiv. 14.33 in.)
  • Supplied Force 66.22 KG
  • Shaft Diameter (A) 7.87 mm
  • Body Diameter (B) 18.03 mm
  • Thread M6 x 1.0
  • More Information For more information please contact us.
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GAS-44
    • GAS44
    View full details

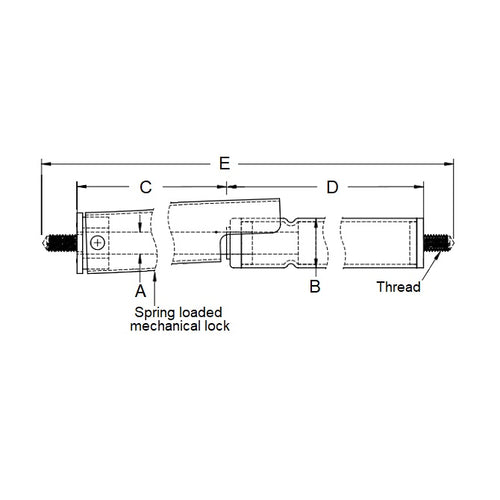

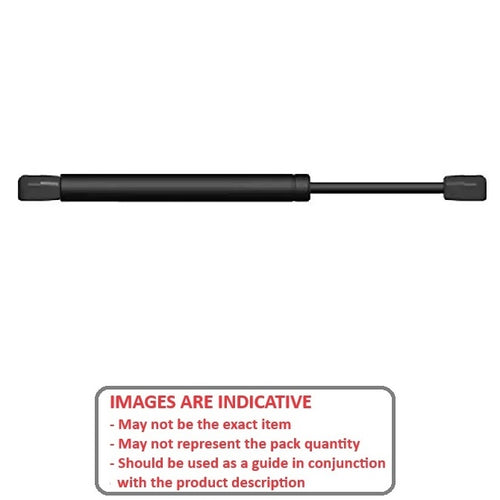

    GAS44RSDiagramGAS44RSImage
