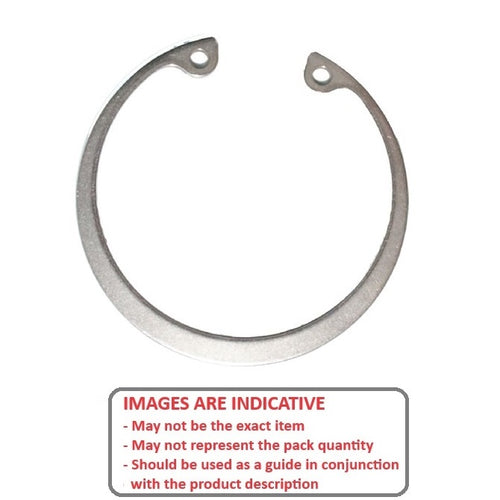

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
15.88
mm
(Equiv. 0.625 in.) - Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.) - Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.) - Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
- Groove Width (W) 0.99 mm + 0.08 / - 0.00
- Clearance in Bore (C) 8.89 mm
- Clearance in Groove (C1) 9.91 mm
- Min. Lug Diameter (h) 1.14 mm
- Min. Extension (n) 1.52
- Standard MIL-16625
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 91580A171
- NoCor HO-062-SS
- Small Parts RIX-10
- HO062SS
- RIX10
- N1300-0062BDS
- N13000062BDS
