K-1588-1588-7620AB-C - Datasheet
ExaktKey
Category Information

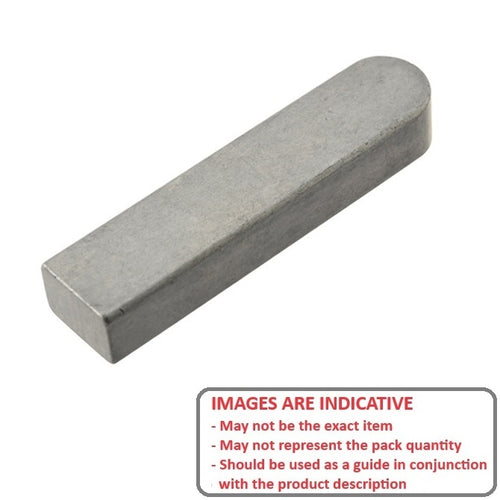

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
15.88
mm
+ 0 / - 0.043
(Equiv. 0.625 in.) - Height (h)
15.88
mm
+ 0 / - 0.043
(Equiv. 0.625 in.) - Length (L)
76.20
mm
+ / - 0.25
(Equiv. 3 in.) - Finish Plain
- Tolerance Type Standard Undersized

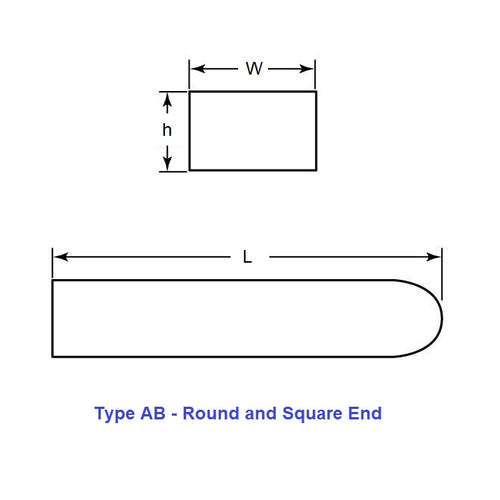

- End Type AB (1 end rounded, other end square)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3306250625-3000
- 33062506253000
