BF0083-0159-0127-DP - Datasheet
MBA
Category Information

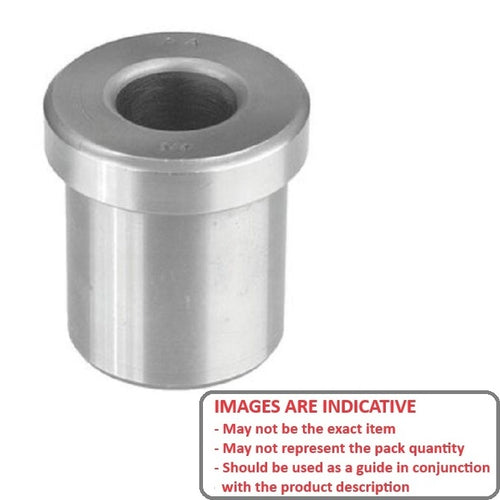

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

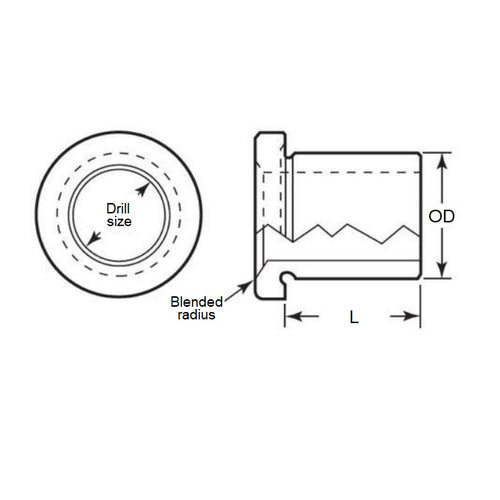

Product Data
- Outside Diameter (OD)
:
15.875
mm
+ 0.0356 / + 0.0432
(Equiv. 0.625 in.) - Drill Size
8.334
mm
+ 0.0025 / + 0.0127
(Equiv. 0.328 in.) - Length
12.700
mm
(Equiv. 0.5 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A232
- BHT28070
- BHT-28070
