TLB-1008-0159 - Datasheet
MBA
Category Information

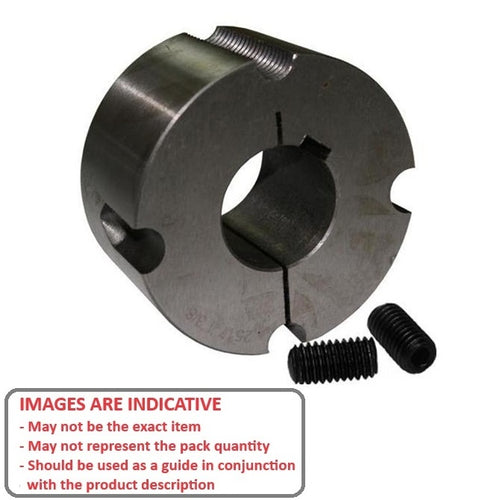

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

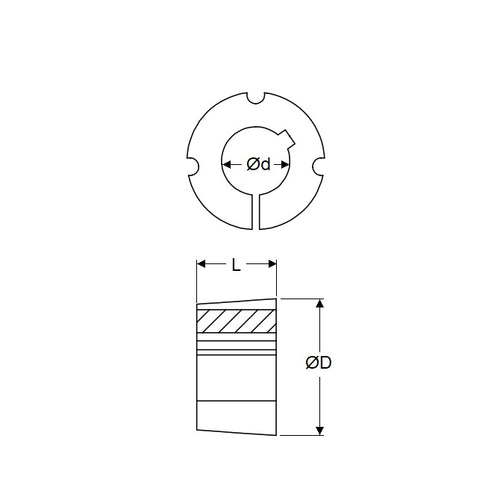

- Bore (d)
:
15.875
mm
(Equiv. 0.625 in.) - Large End Dia. (D)
35.0
mm
(Equiv. 1.378 in.) - Length (L)
22.2
mm
(Equiv. 0.874 in.) - Taperlock Series 1008
- No of Screws 2
- Screw Size 1/4x1/2 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K112
- TLB100858
- TLB-1008-5-8
