COL-01588-029-13-CS - Datasheet
MBA
Category Information

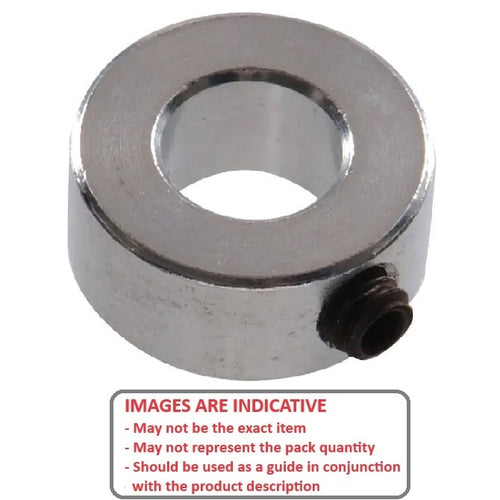

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data

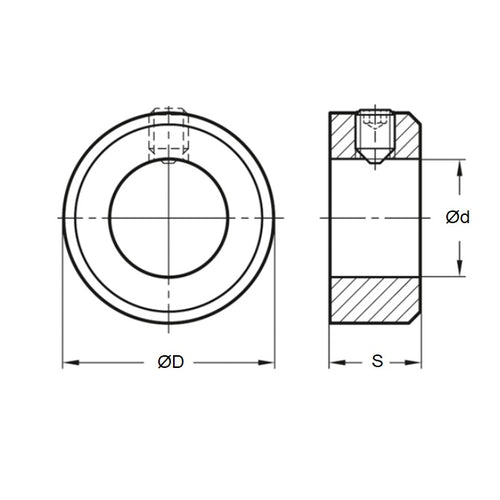

- Suitable Shaft Size (d)
:
15.875
mm
+ 0.051 / - 0.000
(Equiv. 0.625 in.) - Outside Diameter (D)
28.60
mm
(Equiv. 1.126 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Screw Size 5/16-18 x 1/4
- Collar Style Plain Collar
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 9414T13
- Small Parts SC-10
- A7C2-13620
- A7C213620
