GHK1588-1588-051 - Datasheet
ENQUIRE
Category Information

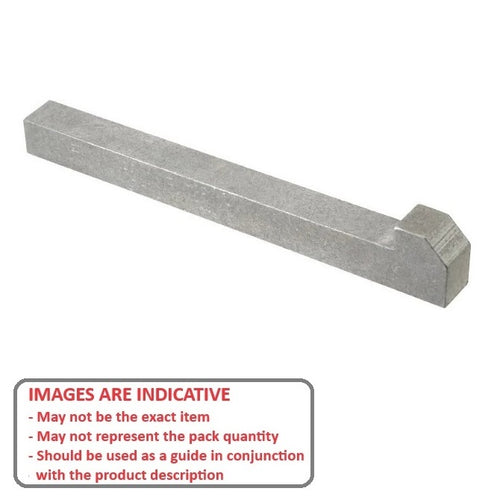

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

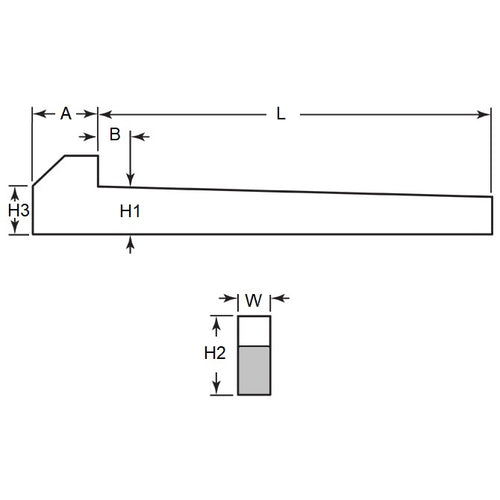

- Nominal Key Height (H1) : 15.875 mm
- Width (W) 15.875 mm
- Length (L) 50.8 mm
- Head Height (h2) Approx. 25.4 mm
- Approx (B) 12.7
- Approx (H3) 16.67
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 17.463 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® GIB-0625-2000
- GIB06252000
