Miniature Bearings Australia
BF0111-0159-0254-DP - Datasheet
MBA
Category Information

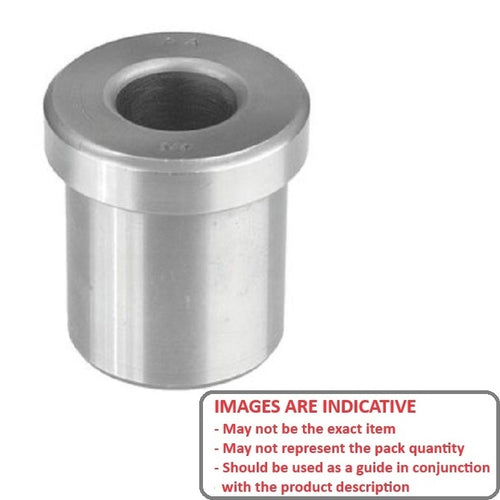

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data

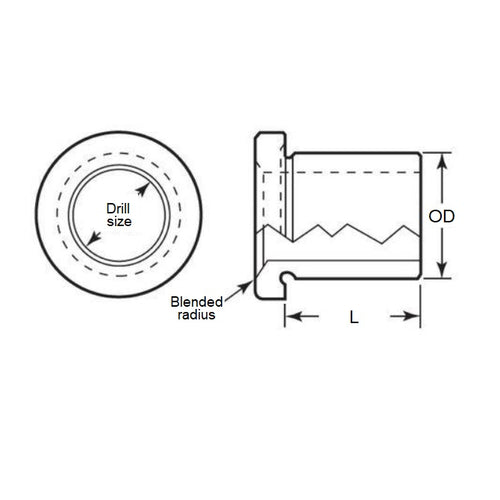

- Outside Diameter (OD)
:
15.875
mm
+ 0.0356 / + 0.0432
(Equiv. 0.625 in.) - Drill Size
11.113
mm
+ 0.0025 / + 0.0127
(Equiv. 0.438 in.) - Length
25.400
mm
(Equiv. 1 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A253
- BHT-28220
- BHT28220
