IDC-178RS - Datasheet
MBA
Category Information

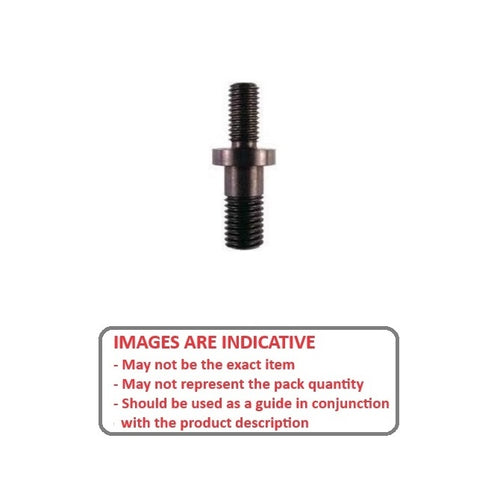

Threaded Rod - Shoulder StudsShoulder Studs Threaded Rod. Machine shoulder studs can be used with idlers or tensioner arms
Product Data

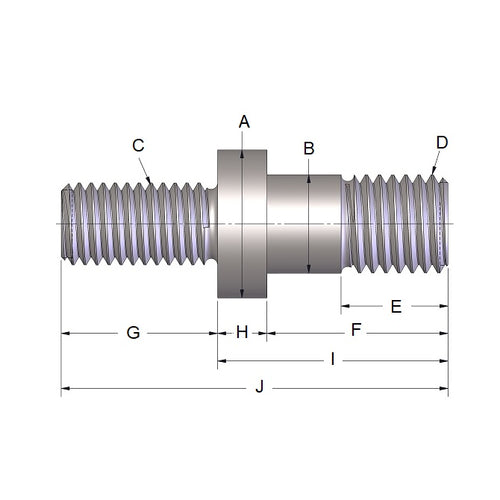

- Shoulder Diameter (B)
:
15.875
mm
(Equiv. 0.625 in.) - Thread Size (D) Shoulder End 5/8-11
- Thread Length (E) Shoulder End
20.63
mm
(Equiv. 0.812 in.) - Thread Size (C) 3/4-16 UNF (19.05mm)
- Thread Length (G) 22.225 mm
- F 33.325 mm
- J 61.900 mm
- Flange Diameter (A) 28.575 mm
- I 39.675 mm
- H 6.35 mm
- Material Carbon Steel
