REM-159-L-PP - Datasheet
MBA
Category Information

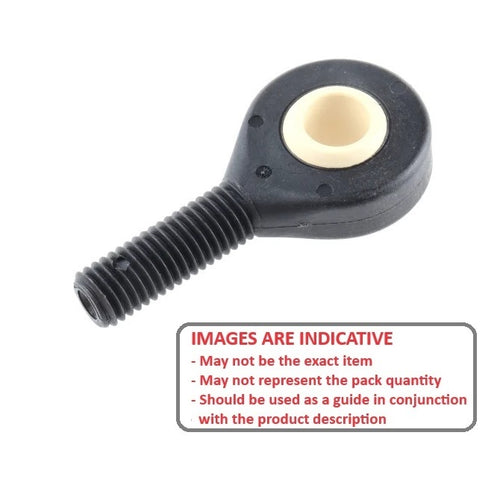

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1) : 15.875 mm
- Overall Length (L) 85.73 mm
- Thread Size 5/8-18 UNF Left
- Min. Thread Length (l2) 41.28 mm
- Head Width (W) 12.29 mm
- Eye Width (W1) 19.05 mm
- Head Diameter (D) 38.10 mm
- Centre Height (l1) 66.68 mm
- Grease Nipple No
- Max Angle of Pivot 22 °
- Max Torque Strength 50.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K571-LEFT
- Igus® KALI-10
- S62GMR063150L
- S62GMR-063150L
- 1064K571LEFT
- KALI10
