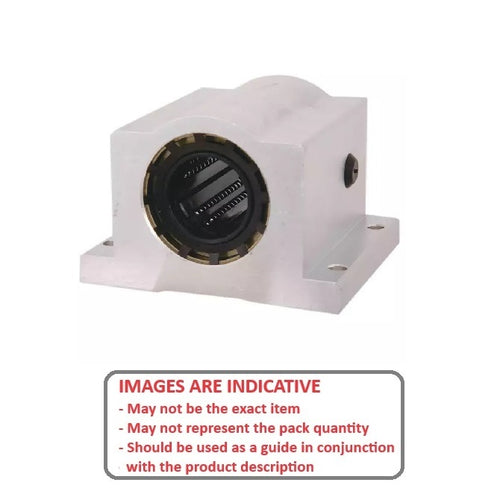

LCHP-0159-076-TSS - Datasheet

MBA

Product Data

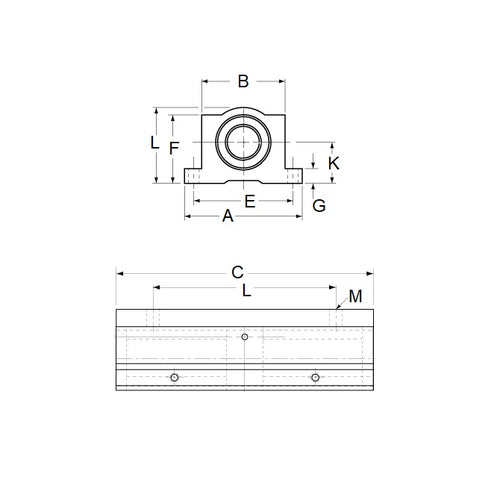

• Nominal Diameter : 15.875 mm
  (Equiv. 0.625 in.)
• Overall Length (C) 63.500 mm
  (Equiv. 2.5 in.)
• Height (B) 44.450 mm
  (Equiv. 1.75 in.)
• Width (A) 101.600 mm
• Bolt Centres (D) 63.500 mm
• Bolt Width (E) 53.975 mm
• Height (F) 36.576 mm
• Flange Thickness (G) 7.112 mm
• Hole Diameter (J) 4.826 mm
• Centre Height (K) 22.225 mm
• Overall Height (L) 41.402 mm
• Dynamic Load Capacity 562.454 kgf

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Thompson SSUTWN-10
• TLM-1010
• TLM1010
• SSUTWN10
