LOHP-0159-102-TSS - Datasheet

MBA

Product Data

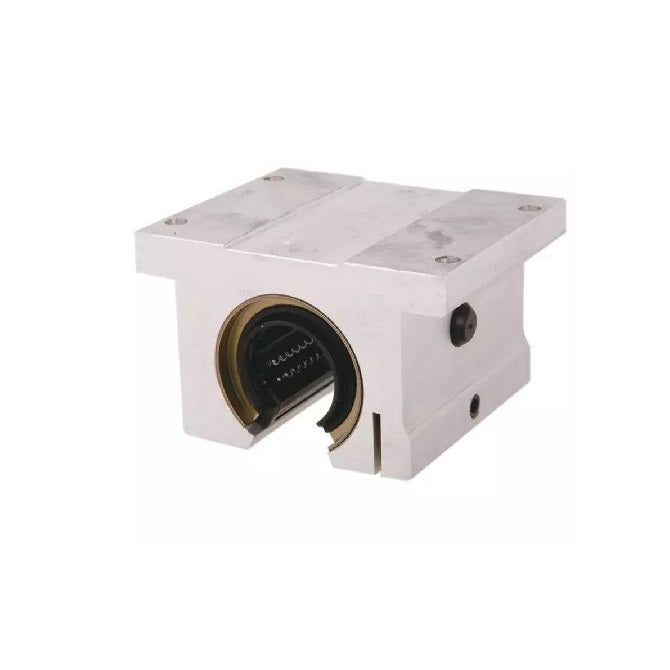

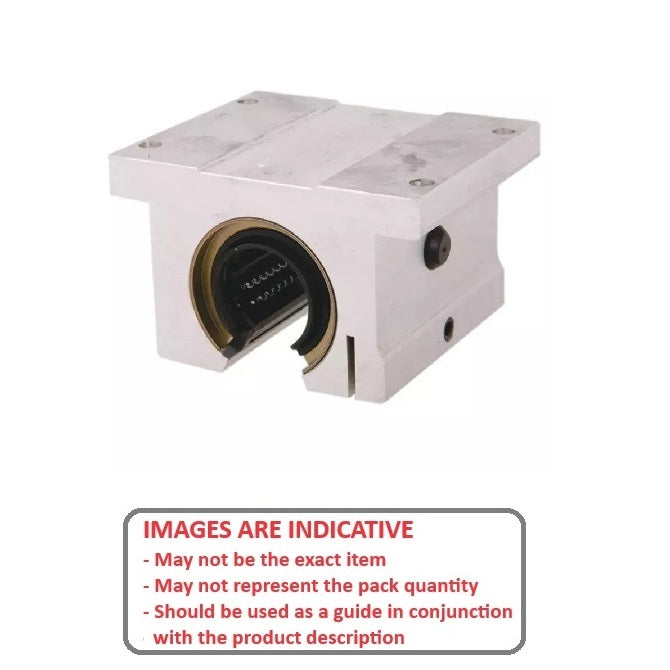

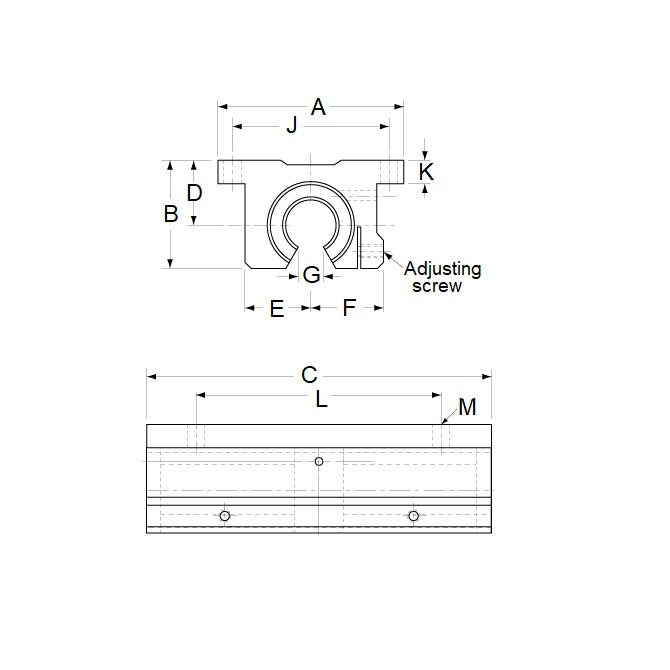

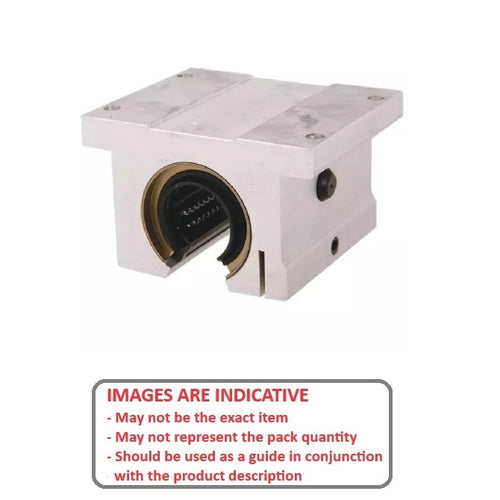

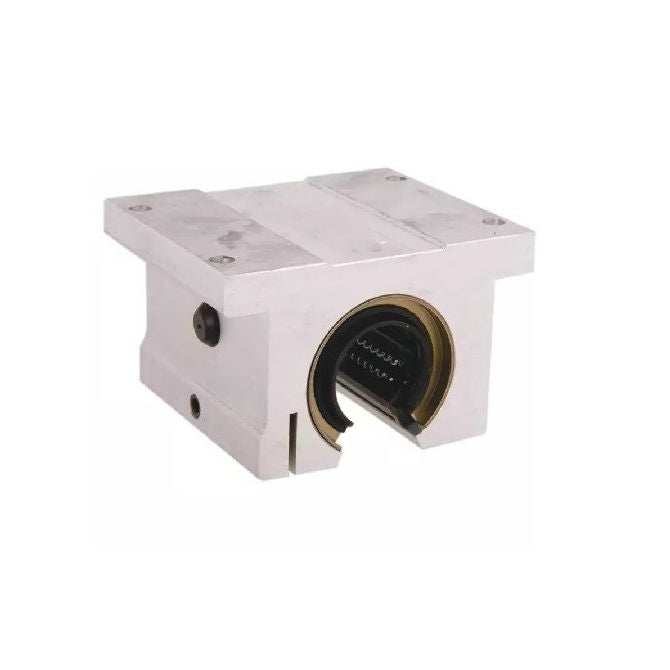

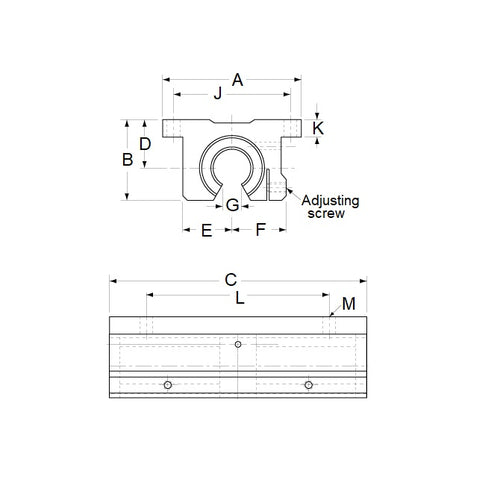

• Nominal Diameter : 15.875 mm
  (Equiv. 0.625 in.)
• Overall Length (C) 101.600 mm
  (Equiv. 4 in.)
• Height (B) 36.576 mm
  (Equiv. 1.44 in.)
• Width (A) 63.500 mm
• Centre Height (D) 22.225 mm
• Centre Width (E) 22.352 mm
• Centre Width (F) 23.876 mm
• Opening Distance (G) 8.636 mm
• Bolt Centres (J x L) 53.975 x 28.575 mm
• Dynamic Load Capacity 281 kgf
• Bolt Hole (M) 4.826 mm
• Flange Thickness (K) 7.112 mm

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Thompson SSUTWNO-10
• TLM1145
• TLM-1145
• SSUTWNO10
