BSR-1550SL - Datasheet
MBA
Category Information

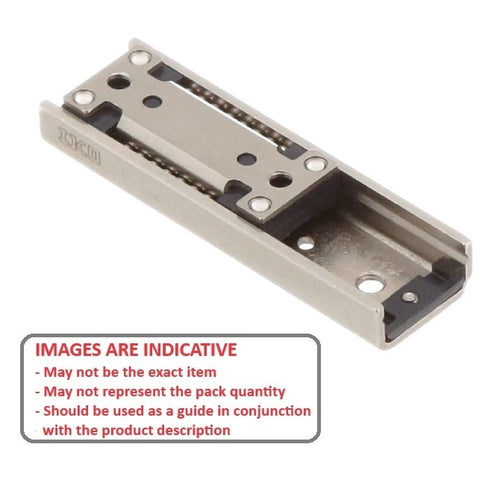

Slides - Linear - Recirculating Ball - StandardStandard Recirculating Ball Linear Slides. The BSR precision Linear Slide series is a lightweight and compact linear motion rolling guide made of stainless steel formed precisely to be U-shaped table or track rail.
- Slides: Stainless Steel End Stop / Retainer: Synthetic Resin.
- Maximum Speed: 0.5 m/sec (30m/min).
- Temperature: +100oC (Constant), +120oC (Maximum).
- Does not incorporate a mechanical stopper. Sensitive to external contaminants.
- Note BSR1530SL and BSR2040SL can not be mounted from inside of track rail.

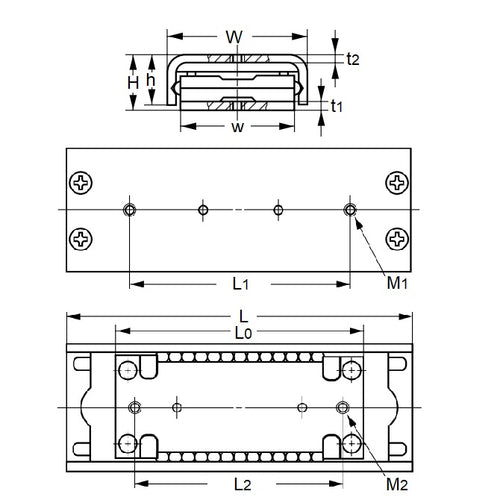

Product Data
- Width (W)
:
15.0
mm
(Equiv. 0.591 in.) - Height (H)
8.0
mm
(Equiv. 0.315 in.) - Length (L)
50.0
mm
(Equiv. 1.969 in.) - Bolt Hole Centres (L1 / L2) 24 / 34 mm
- Max Stroke 30.0 mm
- Screw / Max Depths (S1/S2) 1.8 / 3.0 mm
- Table Top Depth (h) 7.0 mm
- Base Thickness (t1) 1.0 mm
- Top Thickness (t2) 1.2 mm
- Basic Dynamic Load Rating 51 kgf
- Basic Static Load Rating 34 kgf
Product Compliance and Data
Additional Resources
Cross References
- BSR1550SL
