UFL002N - Datasheet
MBA
Category Information

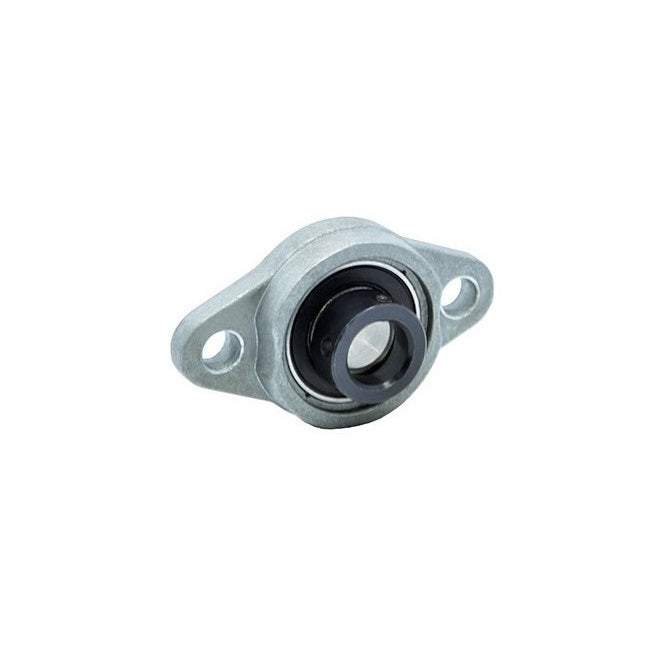

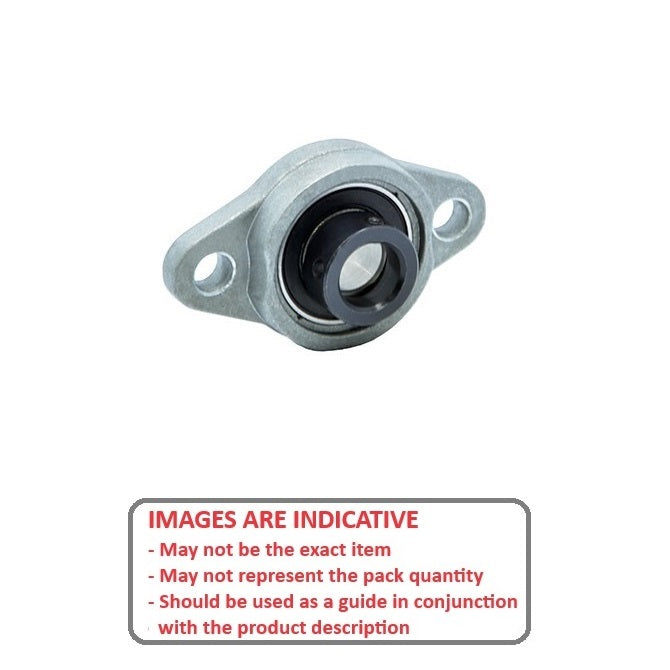

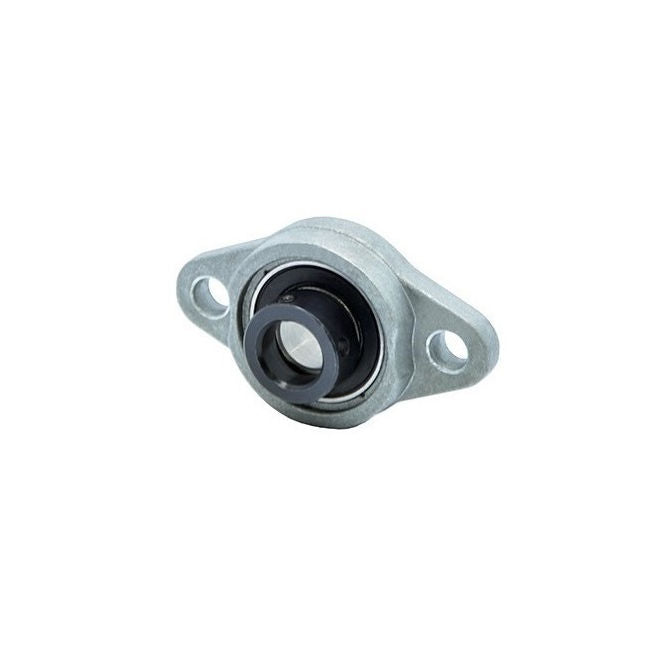

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
Product Data
- Nominal Shaft Size
:
15.0
mm

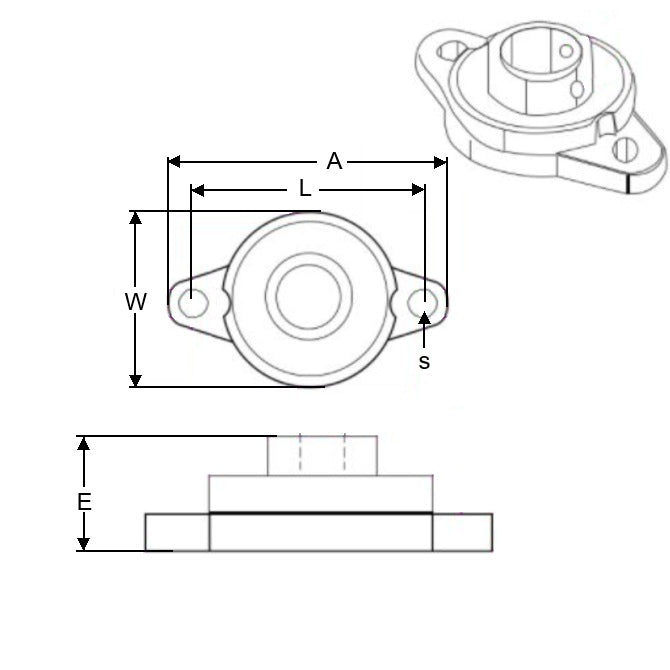

(Equiv. 0.591 in.) - Width (W)
42.0
mm
(Equiv. 1.654 in.) - Overall Length (A)
67.0
mm
(Equiv. 2.638 in.) - Overall Height (E) 20.5 mm
- Bolt Hole Size (s) 7.0 mm
- Bolt Hole Centres (L) 53.0 mm
- Material Aluminium
