CMB015-08-040M-R60 - Datasheet
MBA
Category Information

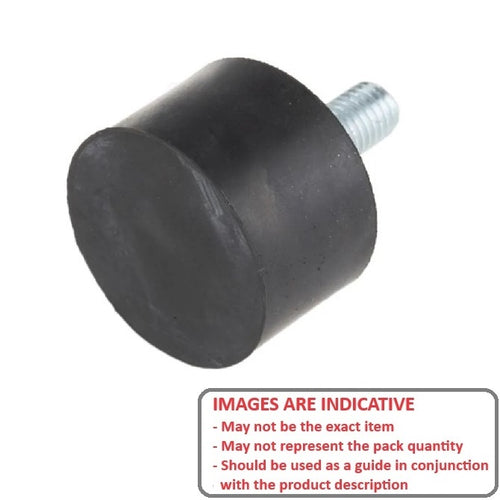

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

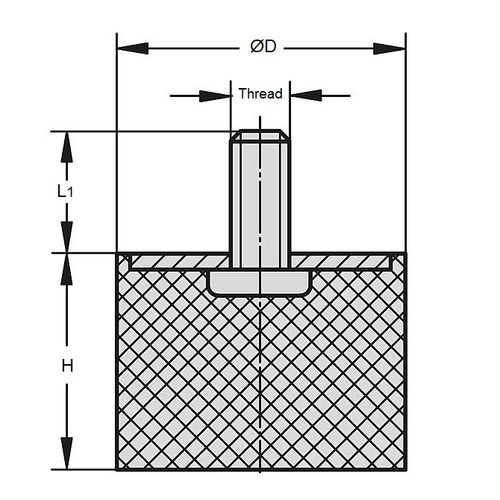

- Nom. Body Diameter (D)
:
15.0
mm
(Equiv. 0.591 in.) - Body Height (H)
8.0
mm
(Equiv. 0.315 in.) - Thread Size (G) M4x0.7
- Shore Hardness 60
- Thread Length (L1) 10.0 mm
- Compression Load 45.5 Kg
- Deflection 2.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-VE1508-10
- CVE150810
- 1508MFB1060
- 1508MFB10-60
- D-ZY-4-15-8
- DZY4158
