CMM015-15-050M-R60 - Datasheet

MBA

Product Data

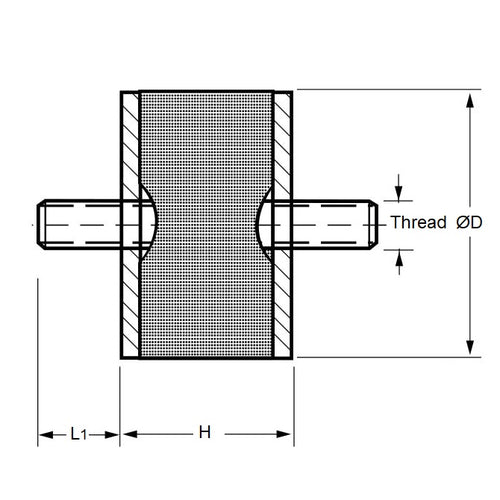

• Nom. Body Diameter (D) : 15.0 mm
  (Equiv. 0.591 in.)
• Body Height (H) 15.0 mm
  (Equiv. 0.591 in.)
• Thread Size M5x0.8
• Shore Hardness 60
• Thread Length (L1) 15.0 mm
• Compression Load 10.7 (23) Kg (lbs)
• Deflection 1.3 mm
• Max Shear Load 5.5 (12.3) Kg (lbs)
• Configuration Male to Male
• Material Natural Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• AZY51515
• A-ZY-5-15-15
