CFF015-15-040M-R60 - Datasheet
MBA
Category Information

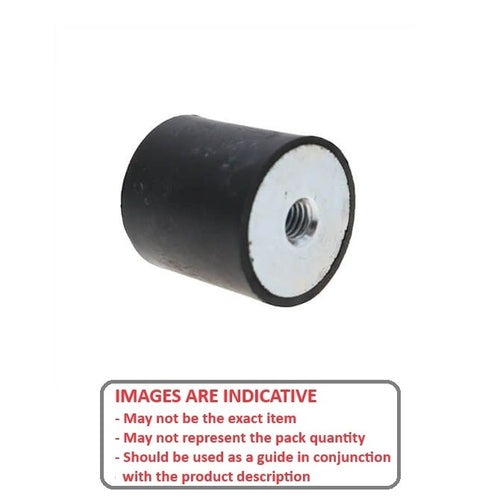

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

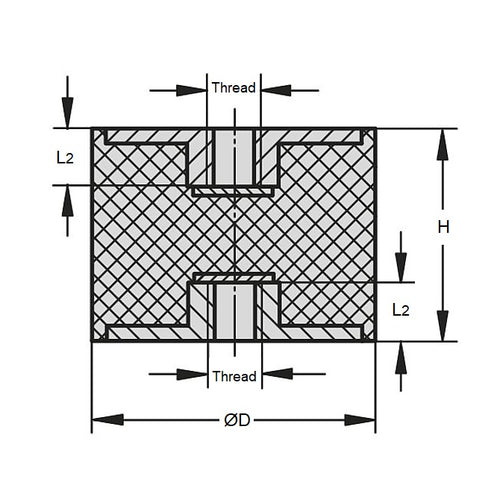

- Nom. Body Diameter (D)
:
15.0
mm
(Equiv. 0.591 in.) - Body Height (H)
15.0
mm
(Equiv. 0.591 in.) - Thread Size M4x0.7
- Shore Hardness 60
- Compression Load 11.2 (25) Kg (lbs)
- Deflection 1.3 mm
- Max Shear Load 5.5 (12.3) Kg (lbs)
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Trelleborg 20-00583
- C-ZY-4-15-15
- CZY41515
- 2000583
