CCI-01429-CZY - Datasheet
MBA
Category Information

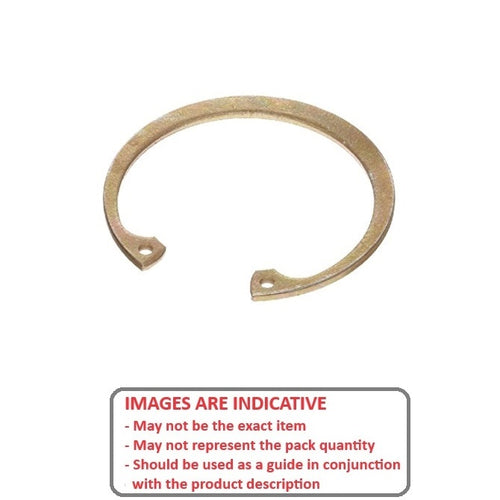

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
14.29
mm
(Equiv. 0.563 in.) - Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.) - Groove Dia. (Dg)
15.14
mm
+ 0.00 / - 0.06
(Equiv. 0.596 in.) - Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
- Groove Width (W) 0.99 mm + 0.08 / - 0.00
- Clearance in Bore (C) 7.11 mm
- Clearance in Groove (C1) 8.13 mm
- Min. Lug Diameter (h) 1.14 mm
- Min. Extension (n) 1.30
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
