REM-140-R-PP - Datasheet
MBA
Category Information

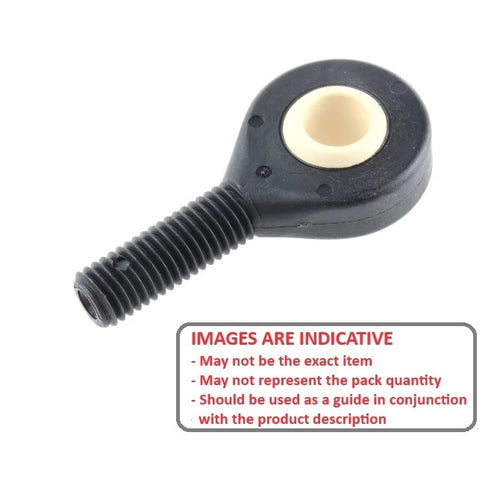

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1) : 14.000 mm
- Overall Length (L) 79.00 mm
- Thread Size M14x2 Right
- Min. Thread Length (l2) 36.00 mm
- Head Width (W) 13.50 mm
- Eye Width (W1) 19.00 mm
- Head Diameter (D) 38.00 mm
- Centre Height (l1) 61.00 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 35.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® I-558
- I558
- S62GMRM1419R
- KARM-14
- KARM14
