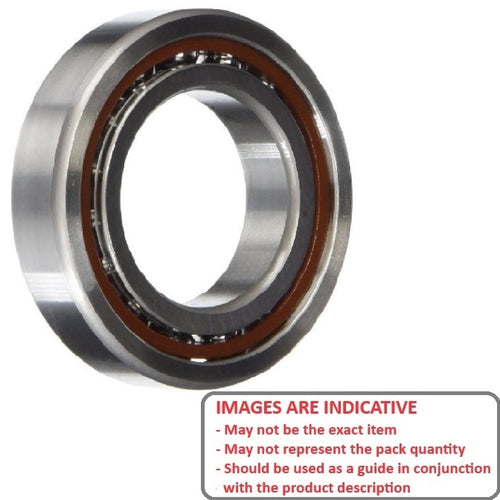

MR2513-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

ID (d) : 13.000 mm
(Equiv. 0.512 in.)
OD (D) 25.000 mm
(Equiv. 0.984 in.)
Width (B) 6.000 mm
(Equiv. 0.236 in.)
Precision Grade Economy
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR2513
Limiting Speed 47120
Cage Type Polyamide
Static Load Rating KGf 142.5
Dynamic Load Rating KGf 279.3
Radii 0.30 mm
Inner Shoulder (UI) 15.5mm
Outer Shoulder (UO) 20.4 mm
Number of Balls 10
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
Nova Rossi - 2000 10 Port - 21 - Bearing 13-25-6mm
Nova Rossi - 7 SB - 3.5 Rex - Rear Bearing 13-25-6mm
Nova Rossi - BR21SB01 Rex - 21 3.5CC - Bearing 13-25-6mm
Nova Rossi - BT21SB01 Top - 21 3.5CC - Bearing 13-25-6mm
Nova Rossi - CX15R/N - 12 2.1CC - Bearing 13-25-6mm
Nova Rossi - ER15R Rex - 12 2.1CC - Bearing 13-25-6mm
Nova Rossi - ET15R Top - 15 2.5CC - Bearing 13-25-6mm
Nova Rossi - Nova - 28 4.66CC - Bearing 13-25-6mm
Nova Rossi - Rex 350 Short Stroke - Rear Bearing 13-25-6mm
Nova Rossi - TR15R Rex - 28 4.66CC - Bearing 13-25-6mm
Nova Rossi - TT15R Top - 12 21.CC - Bearing 13-25-6mm
Nova Rossi - TX15R/N - 12 21.CC - Bearing 13-25-6mm
OS - RZ-B - 61 - Bearing 13-25-6mm
OS - RZ-BP - 21 - Bearing 13-25-6mm
OS - RZ-M - 21 - Bearing 13-25-6mm
OS - RZ-R P - 21 - Bearing 13-25-6mm
OS - RZ-V01B P - 21 - Bearing 13-25-6mm
OS - RZ-V99B - 21 - Bearing 13-25-6mm
OS - RZ-V99B P - 21 - Bearing 13-25-6mm
OS - SZ-H - 32 - Bearing 13-25-6mm
OS - SZ-H Ring Engine - 70 - Bearing 13-25-6mm
RB - 25 All Models - Bearing 13-25-6mm
RB - Concept.21 WS7 - 21 - Bearing 13-25-6mm
RB - S5 - 21 - Bearing 13-25-6mm
RB - S7 EUROPA - 21 - Bearing 13-25-6mm
RB - S7II - 5 - Bearing 13-25-6mm
RB - WS7 - 21 - Bearing 13-25-6mm
RB - WS7II - 12 - Bearing 13-25-6mm
RB - WS7III - 21 - Bearing 13-25-6mm
Rex - 3.5 Serpent - 15 - Bearing 13-25-6mm
Rex - SB - 120 - Bearing 13-25-6mm
Rex - Serpent - 21 - Bearing 13-25-6mm
Rex Nova Rossi - 7 SB - 3.5 - Rear Bearing 13-25-6mm
Rossi - 21 - Rear Bearing 13-25-6mm
Rossi - 21 Marine - Rear Bearing 13-25-6mm
Rossi - 40 All Models - Bearing 13-25-6mm
Rossi - Marine - 40 - Bearing 13-25-6mm
Rossi - Nitro - 60 - Bearing 13-25-6mm
Sport Werks - All - 27 - Bearing 13-25-6mm
TOP - BT3.5BK - 54 - Bearing 13-25-6mm

Cross References

BOCA MR2513TH9
BOCA MR2513TH9-C3
MR2513TH9C3
MR2513 Basic Size Ref
