MR2513-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

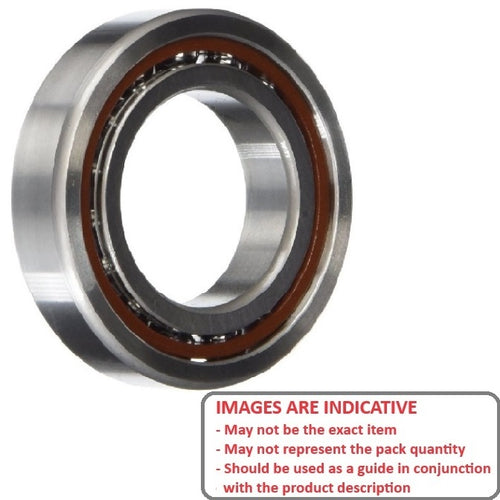

High speed polyamide cage. Ceramic balls.

ID (d) : 13.000 mm
(Equiv. 0.512 in.)
OD (D) 25.000 mm
(Equiv. 0.984 in.)
Width (B) 6.000 mm
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR2513
Limiting Speed 47120
Cage Type Polyamide
Static Load Rating KGf 114
Dynamic Load Rating KGf 223.4
Radii 0.30 mm
Inner Shoulder (UI) 15.5mm
Outer Shoulder (UO) 20.4 mm
Number of Balls 10
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
Nova Rossi - 2000 10 Port - 21 - Bearing 13-25-6mm
Nova Rossi - 2000 10 Port - 21 3.5CC - Bearing 13-25-6mm
Nova Rossi - BR21SB01 Rex - 2000 - Bearing 13-25-6mm
Nova Rossi - BT21SB01 Top - 21 3.5CC - Bearing 13-25-6mm
Nova Rossi - CX15R/N - 12 2.1CC - Bearing 13-25-6mm
Nova Rossi - ER15R Rex - 15 2.5CC - Bearing 13-25-6mm
Nova Rossi - ET15R Top - 12 2.1CC - Bearing 13-25-6mm
Nova Rossi - ET15R Top - 15 2.5CC - Bearing 13-25-6mm
Nova Rossi - Nova - 15 - Bearing 13-25-6mm
Nova Rossi - TR15R Rex - 28 4.66CC - Bearing 13-25-6mm
Nova Rossi - TT15R Top - 12 21.CC - Bearing 13-25-6mm
Nova Rossi - TX15R/N - 15 2.5CC - Bearing 13-25-6mm
OS - RZ-B - 21 - Bearing 13-25-6mm
OS - RZ-BP - 21 - Bearing 13-25-6mm
OS - RZ-M - 21 - Bearing 13-25-6mm
OS - RZ-R P - 21 - Bearing 13-25-6mm
OS - RZ-V01B P - 21 - Bearing 13-25-6mm
OS - RZ-V99B - 21 - Bearing 13-25-6mm
OS - RZ-V99B P - 21 - Bearing 13-25-6mm
OS - SZ-H - 32 - Bearing 13-25-6mm
OS - SZ-H Ring Engine - 70 - Bearing 13-25-6mm
OS - SZ-H Ring Engine - 91 - Bearing 13-25-6mm
RB - 15 All Models - Bearing 13-25-6mm
RB - Concept.21 WS7 - 21 - Bearing 13-25-6mm
RB - S5 - 21 - Bearing 13-25-6mm
RB - S7 EUROPA - 5 - Bearing 13-25-6mm
RB - S7II - 21 - Bearing 13-25-6mm
RB - WS7 - 12 - Bearing 13-25-6mm
RB - WS7 - 23 - Bearing 13-25-6mm
RB - WS7II - 21 - Bearing 13-25-6mm
RB - WS7III - 21 - Bearing 13-25-6mm
Rex - 3.5 Serpent - 22 - Bearing 13-25-6mm
Rex - SB - 21 - Bearing 13-25-6mm
Rex - Serpent - 7 - Bearing 13-25-6mm
Rossi - 40 All Models - Bearing 13-25-6mm
Rossi - 45 All Models - Bearing 13-25-6mm
Rossi - Marine - 40 - Bearing 13-25-6mm
Rossi - Nitro - 90 - Bearing 13-25-6mm
Sport Werks - All - 27 - Bearing 13-25-6mm
TOP - BT3.5BK - 91 - Bearing 13-25-6mm

Cross References

BOCA MR2513C-TH9-C3
MR2513CTH9C3
MR2513 Basic Size Ref
