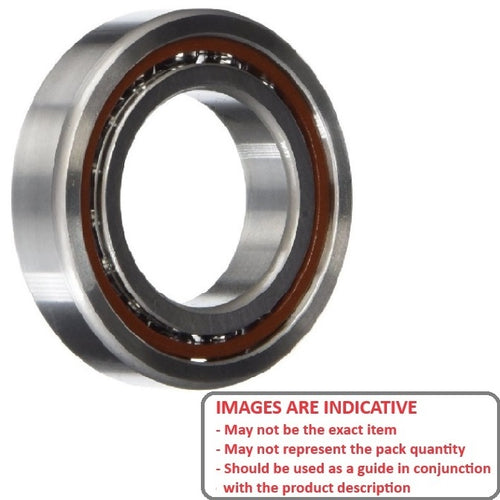

MR2413-C3-T9H - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

ID (d) : 13.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.512 in.)
OD (D) 24.000 mm _{+ 0.000 / - 0.010}
(Equiv. 0.945 in.)
Width (B) 6.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Oil
Lubrication Name Standard Unspecified
Basic Part MR2413
Limiting Speed 57600
Cage Type Polyamide
Static Load Rating KGf 150
Dynamic Load Rating KGf 294
Radii 0.30 mm
Inner Shoulder (UI) 15.5mm
Outer Shoulder (UO) 20.4 mm
Number of Balls 11
Clearance C3 (11 to 25)
Precision Grade Abec 1
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Nitro Engine Parts
Serpent - 5x5 Mega Engine - Engine Rear Bearing
Associate Electrics - AE.21 - 0.21 - Bearing 13-24-6mm
China Shanghai - CSGS / Car / Marine - 15 - Bearing 13-24-6mm
CMB - 21 All Models - Bearing 13-24-6mm
CMB - 21 LS Green Head - Rear Bearing 13-24-6mm
CMB - 67 All Models - Bearing 13-24-6mm
CMB - EVO Marine - 45 - Bearing 13-24-6mm
CMB - LS Green Head Marine - 45 - Bearing 13-24-6mm
CMB - Old - 21 - Bearing 13-24-6mm
CMB - RS - 35 - Bearing 13-24-6mm
CMB - TT Marine - 21 - Bearing 13-24-6mm
Dynamite - Mach 26 - 21 - Bearing 13-24-6mm
Dynamite - Mach 26 - 29 - Bearing 13-24-6mm
Dynamite - Mach 427 - 21 - Bearing 13-24-6mm
Dynamite - Mach 427 - 26 - Bearing 13-24-6mm
Fantom - FR27 - 40 - Bearing 13-24-6mm
Fantom - FR27 - 46 - Bearing 13-24-6mm
Force - All Other Rear Exhaust - 21 - Bearing 13-24-6mm
Force - All Other Rear Exhaust - 61 - Bearing 13-24-6mm
Force - E-1503 Rear Exhaust Not EFRA - 0.15 - Bearing 13-24-6mm
Force - E-1503 Rear Exhaust Not EFRA - 0.21 - Bearing 13-24-6mm
GS General Silicone - 15R - 47 - Bearing 13-24-6mm
GS General Silicone - 15R - 61 - Bearing 13-24-6mm
GS General Silicone - R25MT - 0.15 - Bearing 13-24-6mm
GS General Silicone - R25MT - 21 - Bearing 13-24-6mm
HPI - 21 - Bearing 13-24-6mm
HPI - 49 - Bearing 13-24-6mm
Irvine - Halman Special - 61 - Bearing 13-24-6mm
K.B - 3.5 Outboard X.196 - Rear Bearing 13-24-6mm
K.B - 45 - Rear Bearing 13-24-6mm
K.B - 7.5 All Models - Bearing 13-24-6mm
K.B - Outboard 13mm Crank - 3.5 - Bearing 13-24-6mm
LRP Nitro - Truggy 28 - 15 - Bearing 13-24-6mm
LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Bearing 13-24-6mm
Mac - Outboard - 21 - Bearing 13-24-6mm
Nova Rossi - CX15 2.5cc - Rear Bearing 13-24-6mm
Nova Rossi - Nova - 15 - Bearing 13-24-6mm
Nova Rossi - Nova - 28 4.66CC - Bearing 13-24-6mm
Ofna - 21 - 15 2.5CC - Bearing 13-24-6mm
Ofna - Maxx 3.5 - 12 - Bearing 13-24-6mm
OPS - 3.5 -21 Pro - Rear Bearing 13-24-6mm
OPS - 90 All Models - Bearing 13-24-6mm
OPS - Pro - 30 - Bearing 13-24-6mm
OPS - Pro - 60 - Bearing 13-24-6mm
OPS - Rotor BRGS - 21 - Bearing 13-24-6mm
OPS - Rotor BRGS - 60 - Bearing 13-24-6mm
Orion - 0.21 SB - 90 - Bearing 13-24-6mm
OS - 21 EX-M ABC RC MAR - Rear Bearing 13-24-6mm
OS - 21 EX-R ABC RC - Rear Bearing 13-24-6mm
OS - 21 RF-B ABC RC - Rear Bearing 13-24-6mm
OS - 21 RX-B RX-M - Rear Bearing 13-24-6mm
OS - 21 SE-B ABC RC - Rear Bearing 13-24-6mm
OS - 21 SE-M ABC RC MAR - Rear Bearing 13-24-6mm
OS - 21 SE-R ABC RC - Rear Bearing 13-24-6mm
OS - 21 VF-R ABC RC - Rear Bearing 13-24-6mm
OS - EX-B - 12 - Bearing 13-24-6mm
OS - EX-M ABC RC - 12 - Bearing 13-24-6mm
OS - EX-R ABC RC - 65 - Bearing 13-24-6mm
OS - Outboard Marine - 120 - Bearing 13-24-6mm
OS - Outboard Marine - 16 - Bearing 13-24-6mm
OS - RF-B ABC RC - 21 - Bearing 13-24-6mm
OS - RX-B - 140 - Bearing 13-24-6mm
OS - RX-B - 15 - Bearing 13-24-6mm
OS - RX-M Marine - 61 - Bearing 13-24-6mm
OS - SE-B ABC RC - 21 - Bearing 13-24-6mm
OS - SE-M ABC RC - 21 - Bearing 13-24-6mm
OS - SE-R ABC RC - 21 - Bearing 13-24-6mm
OS - VF-R ABC RC - 25 - Bearing 13-24-6mm
OS - XM Marine Outboard - 21 - Bearing 13-24-6mm
OS - XM Marine Outboard - 61 - Bearing 13-24-6mm
Picco - 21 EXR - 2 Stroke - Rear Bearing 13-24-6mm
Picco - 61 All Models - Bearing 13-24-6mm
Picco - 90 All Models - Bearing 13-24-6mm
Picco - F1 -P5 21 - Rear Bearing 13-24-6mm
Picco - Max - 90 - Bearing 13-24-6mm
Picco - P 3.5 Max - 80 - Bearing 13-24-6mm
Picco - P2 - 90 - Bearing 13-24-6mm
Picco - P5 - 21 - Bearing 13-24-6mm
Picco - P5 - 26 - Bearing 13-24-6mm
Picco - P5 EXR - 21 - Bearing 13-24-6mm
Picco - P5 EXR - 27 - Bearing 13-24-6mm
Picco - P6 - 21 - Bearing 13-24-6mm
Picco - RS21 3.5cc Mega - Rear Bearing 13-24-6mm
RB - 15 All Models - Bearing 13-24-6mm
RB - 2.5cc 15 - Rear Bearing 13-24-6mm
RB - All Models - Bearing 13-24-6mm
RB - X - 21 - Bearing 13-24-6mm
Rossi - 20 Nova Rossi - Rear Bearing 13-24-6mm
Rossi - 21 Old Marine - Rear Bearing 13-24-6mm
Rossi - 21 Revo Marine - Rear Bearing 13-24-6mm
Rossi - 40 Nova - Rear Bearing 13-24-6mm
Rossi - Blackhead - 91 - Bearing 13-24-6mm
Rossi - Marine Old - 45 - Bearing 13-24-6mm
Rossi - Revo Marine - 40 - Bearing 13-24-6mm
Rossi - Revo Marine - 60 - Bearing 13-24-6mm
Russian - Pro F - 46 - Bearing 13-24-6mm
SH - SH-28 - 12 - Bearing 13-24-6mm
SH - SH-28 Pro - 21 - Bearing 13-24-6mm
SH - SH-28 Pro - 28 - Bearing 13-24-6mm
Super Tigre - G34 - 2 Stroke - Rear Bearing 13-24mm
Super Tigre - G34 - 20 - Bearing 13-24-6mm
Super Tigre - G34 - 35 - Bearing 13-24-6mm
Super Tigre - G34H Heli - 2 Stroke - Rear Bearing 13-24mm
Thunder Tiger - Pro 21B - RC ABS-RC - Rear Bearing 13-24-6mm
TOP - CT12 - 91 - Bearing 13-24-6mm
XTM Racing - 24.7 Pro - 21 - Bearing 13-24-6mm
XTM Racing - 24.7 Pull Start - 18 - Bearing 13-24-6mm
XTM Racing - 24.7 Pull Start - 24.7 - Bearing 13-24-6mm

Cross References

SMB 6901-13TNH
CSR AY13
ADR AY13TWC3
BOCA MR2413-TNH-C3
BOCA MR6901-13TH9
SMB MR6901-13TH9
WIB O1300SD-T9H-R23-WW-613246SD
AY13-T9H
AY13T9H
MR2413T9HC3
MR690113TH9
MR2413TNHC3
690113TNH
O1300SDT9HR23WW613246SD
MR2413 Basic Size Ref
