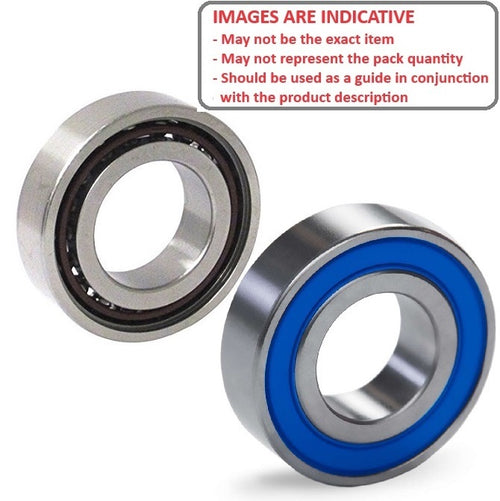

MR2413-2RU-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data
- ID (d)
:
13.000
mm
(Equiv. 0.512 in.) - OD (D)
24.000
mm
(Equiv. 0.945 in.) - Width (B)
6.000
mm
(Equiv. 0.236 in.) - Precision Grade Economy
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C - High Speed Polyamide Cage
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR2413
- Limiting Speed 44764
- Cage Type Polyamide
- Static Load Rating KGf 142.5
- Dynamic Load Rating KGf 279.3
- Radii 0.30 mm
- Inner Shoulder (UI) 15.5mm
- Outer Shoulder (UO) 20.4 mm
- Number of Balls 11
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RU
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- OS - EX-B - 12 - Bearing
- OS - EX-M ABC RC - 12 - Bearing
- OS - EX-M ABC RC - 65 - Bearing
- OS - EX-R ABC RC - 21 - Bearing
- OS - EX-R ABC RC - 65 - Bearing
- OS - RF-B ABC RC - 21 - Bearing
- OS - SE-B ABC RC - 21 - Bearing
- OS - SE-M ABC RC - 21 - Bearing
- OS - SE-R ABC RC - 21 - Bearing
- OS - VF-R ABC RC - 25 - Bearing
- Russian - Pro F - 46 - Bearing
Cross References
- BOCA MR6901-13-2RUTH9-C3
- MR6901132RUTH9C3
- MR2413
- MR2413T9H2RUECO
- MR2413 Basic Size Ref
