CCI-13970-C - Datasheet
MBA
Category Information

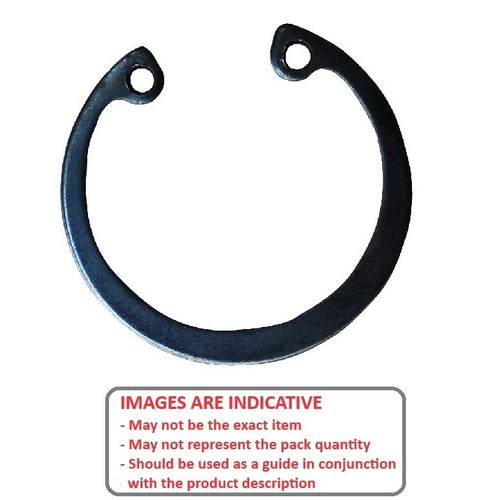

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
139.70
mm
(Equiv. 5.5 in.) - Clip Thickness (T)
3.28
mm
+/- 0.178
(Equiv. 0.129 in.) - Groove Dia. (Dg)
146.38
mm
+ 0.00 / - 0.10
(Equiv. 5.763 in.) - Approx. Loose Circlip OD (Dr) 153.25 mm + 1.65 / - 1.65
- Groove Width (W) 3.53 mm + 0.15 / - 0.00
- Clearance in Bore (C) 115.82 mm
- Clearance in Groove (C1) 122.68 mm
- Min. Lug Diameter (h) 3.84 mm
- Min. Extension (n) 10.29
- Standard MIL-16625
- Material Carbon Steel
