CCE-01399-S15 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 13.99 mm
    (Equiv. 0.551 in.)
  • Clip Thickness (T) 0.89 mm +/- 0.051
    (Equiv. 0.035 in.)
  • Groove Dia. (Dg) 13.18 mm +/- 0.051
    (Equiv. 0.519 in.)
  • Approx. Loose Circlip ID (A) 12.93 mm
  • Groove Width (W) 0.99 mm
  • Clearance in Groove (C1) 20.57 mm
  • Min. Lug Diameter (h) 1.14 mm
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-055-SS
  • N1400-0055KSF
  • N14000055KSF
  • SH055SS
  • S73HW2100055
  • S73HW2-100-055
View full details

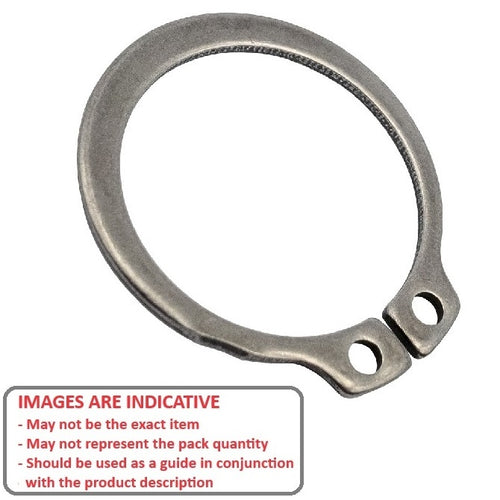

CCE-01399-S15DiagramCCE-01399-S15Image
