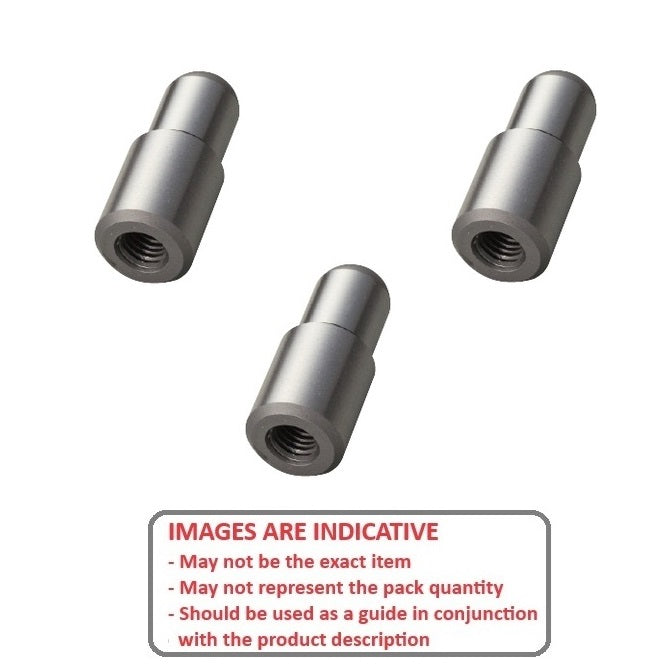

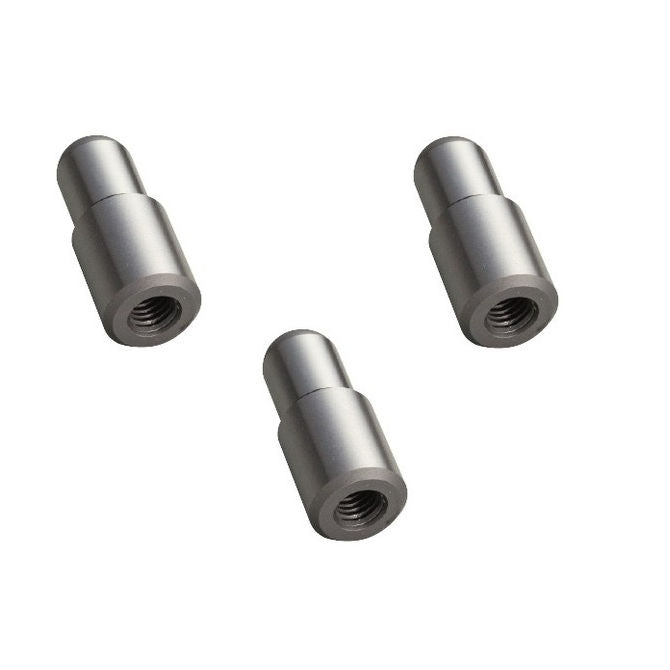

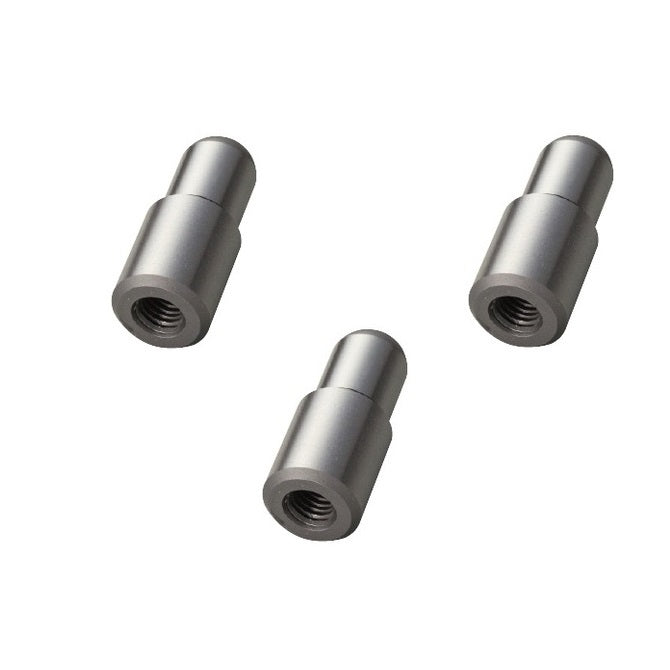

Pins - Dowel - Stepped - Chamfered Ends - Extractable - Carbon SteelCarbon Steel Extractable Chamfered Ends Stepped Dowel Pins. Precision Extractable Dowel Pins with a Step
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Product Data

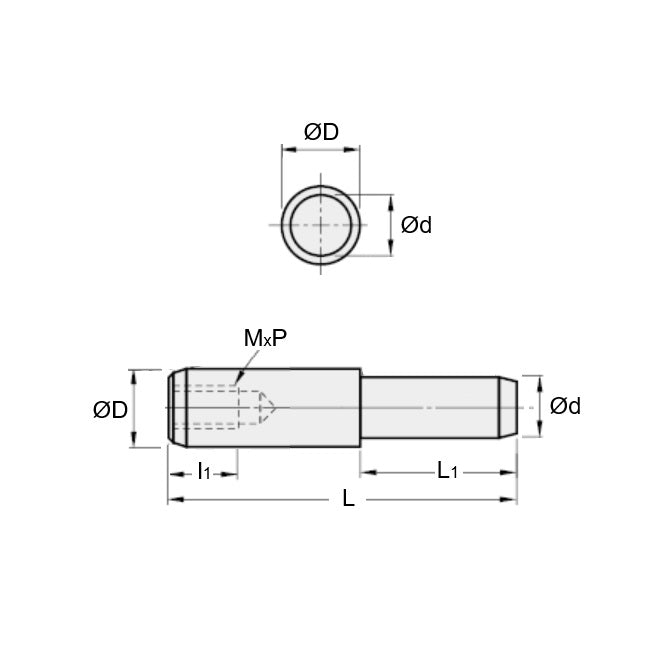

- Diameter (D)
:
13.000
mm
+ 0.005 / + 0.010
(Equiv. 0.512 in.) - Length (L)
70.00
mm
+ 0.005 / + 0.010
(Equiv. 2.756 in.) - Approx. Overall Length
70.00
mm
(Equiv. 2.756 in.) - Type 2 (Chamfer Both Ends)
- Step Diameter (d) 10.000 mm
- Thread Size M6x1.0
- Step Length (L1) 30.00 mm
- ISO 2338
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSFWM13-70
- MSFWM1370
