TMF-602-ARS - Datasheet

MBA

Category Information

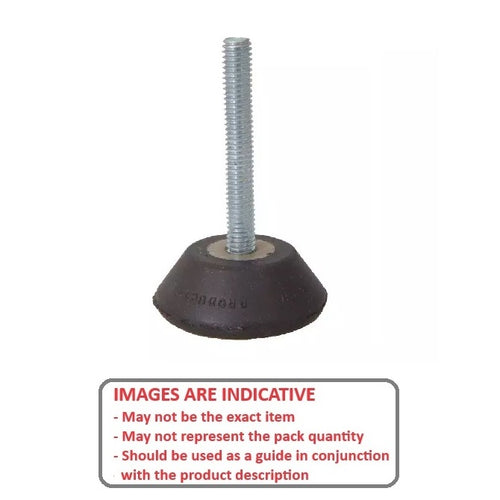

Mounts - Levelling Bonded Neoprene - With Stud

With Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.

    Product Data

    • Load Capacity : 13.5 to 36.0 Kg
    • Min Load Deflection 2.032 mm
      (Equiv. 0.08 in.)
    • Max Load Deflection 5.080 mm
      (Equiv. 0.2 in.)
    • Thread 1/2-13
    • Thread Length 63.5 mm
    • Base Diameter 55.6 mm
    • Foot Height 20.6 mm
    • Top Diameter 34.9 mm
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

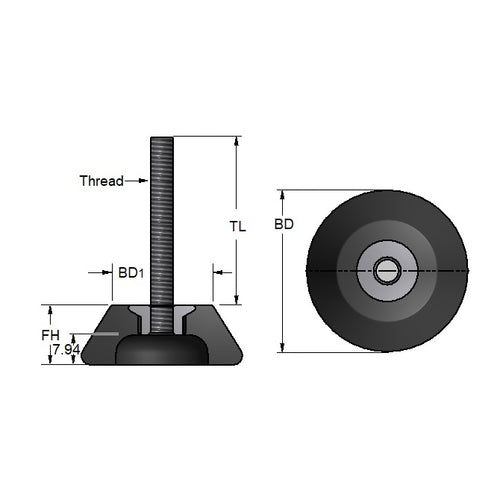

      TMF-602-ARSDiagramTMF-602-ARSImage
