PSP-120-030-S2 - Datasheet
MBA
Category Information

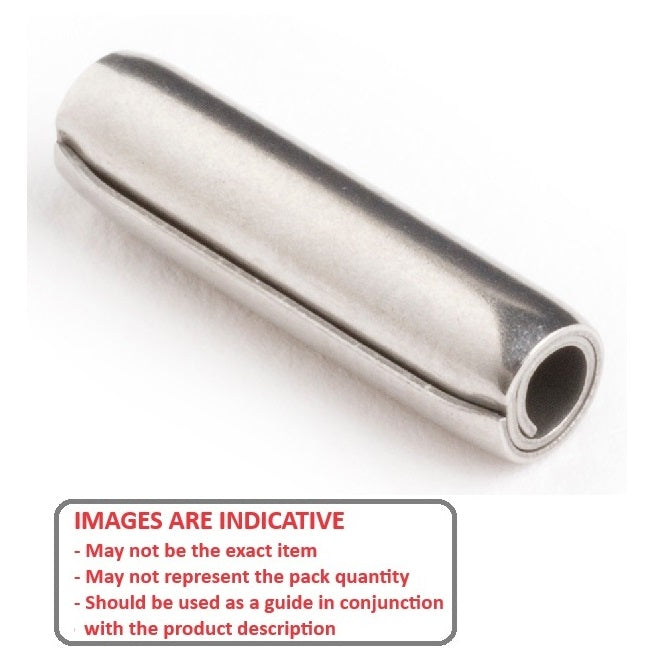

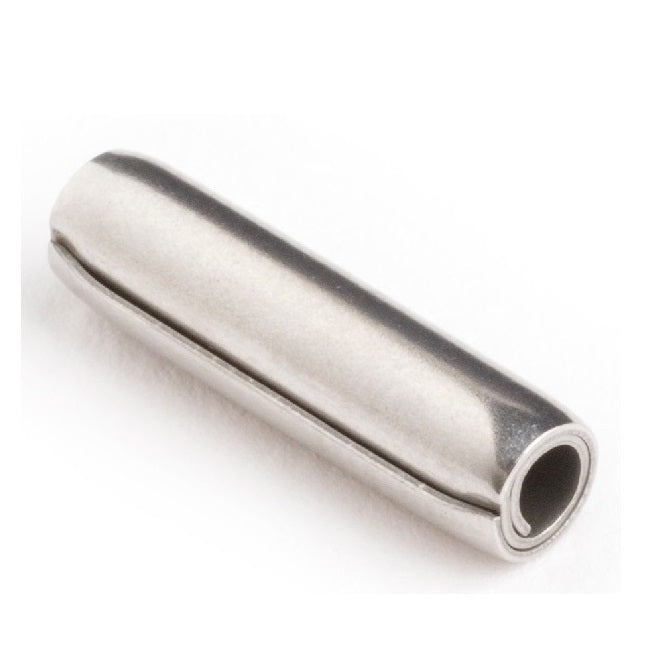

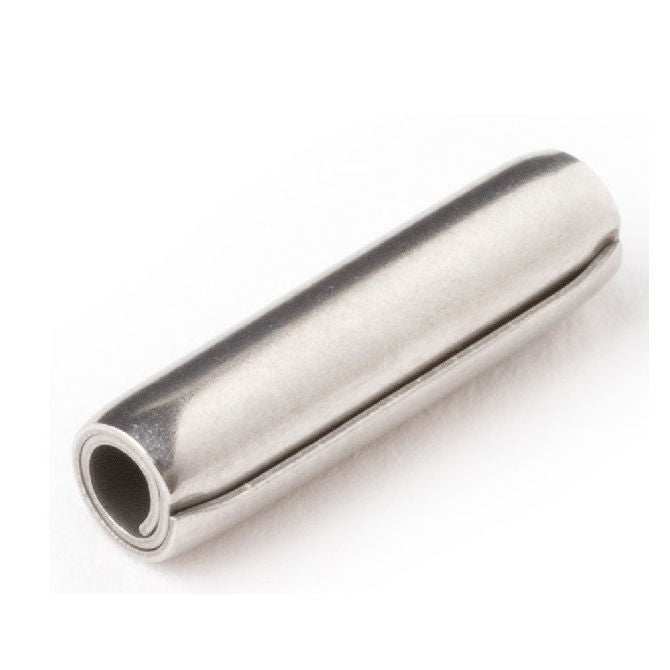

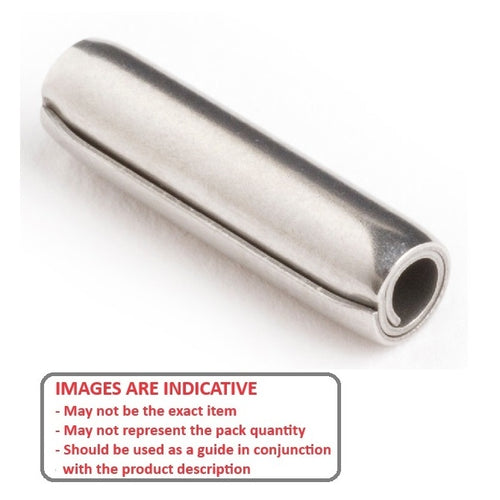

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Hole Diameter
:
12.00
mm
(Equiv. 0.472 in.) - Length
30.00
mm
+/- 0.50
(Equiv. 1.181 in.) - Drill Size
12.00 - 12.18
mm
(Equiv. 0.472 in.) - Loose Diameter 12.40 - 12.85 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM3-120-030
- SPCM3120030
- EP12-30
- EP1230
