Miniature Bearings Australia

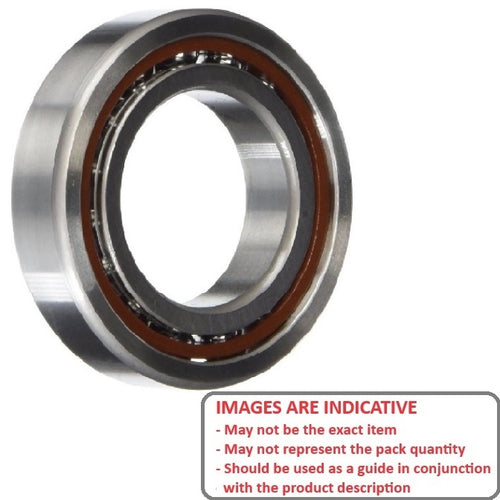

6001B-C3-T9H - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - OD (D)
28.000
mm
+ 0.000 / - 0.010
(Equiv. 1.102 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name Standard Unspecified
- Basic Part 6001B
- Limiting Speed 51200
- Cage Type Polyamide
- Static Load Rating KGf 213
- Dynamic Load Rating KGf 460
- Radii 0.30 mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance C3 (11 to 25)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- HB - 21 Old Models - Bearing 12-28-7mm
- OS - CZ-Z Recoil - 12 - Bearing 12-28-7mm
- OS - FS Surpass RC 4C - 91 - Bearing 12-28-7mm
- OS - VR - 21 - Bearing 12-28-7mm
- OS - VR - 30 - Bearing 12-28-7mm
- OS - VR ABC RC - 48 - Bearing 12-28-7mm
- OS - VR-DF - 21 - Bearing 12-28-7mm
- OS - VRDF - 46 - Bearing 12-28-7mm
- OS - VRDF - 65 - Bearing 12-28-7mm
- OS - VR-DF Heat Sink Head - 46 - Bearing 12-28-7mm
- OS - VR-DF Small Head - 77 - Bearing 12-28-7mm
- OS - VR-M - 91 - Bearing 12-28-7mm
- OS - VR-M Marine - 40 - Bearing 12-28-7mm
- OS - VR-M Marine - 77 - Bearing 12-28-7mm
- OS - VX-M - 46 - Bearing 12-28-7mm
- OS - VX-M Marine - 40 - Bearing 12-28-7mm
- YS - FZ - 60 - Bearing 12-28-7mm
Cross References
- 6001B
- 6001BT9HC3
- 6001B Basic Size Ref
