6901-T9H-RB-ACO-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

High Speed Polyamide Cage, Single Seal and increased clearance

  • ID (d) : 12.000 mm
    (Equiv. 0.472 in.)
  • OD (D) 24.000 mm
    (Equiv. 0.945 in.)
  • Width (B) 6.000 mm
    (Equiv. 0.236 in.)
  • Precision Grade Economy
  • Closure Type RB
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name ACO Anti Corrosion Oil Film
  • Basic Part 6901
  • Limiting Speed 51984
  • Cage Type Polyamide
  • Static Load Rating KGf 142.5
  • Dynamic Load Rating KGf 279.3
  • Radii 0.30 mm
  • Inner Shoulder (UI) 15.35mm
  • Outer Shoulder (UO) 21.40 mm
  • Number of Balls 10
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type RB
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 25 - Rear Bearing 12-24-6mm
  • ASP - 32 - Rear Bearing 12-24-6mm
  • Bluebird - 21 - Rear Bearing 12-24-6mm
  • Enya - 21 - Rear Bearing 12-24-6mm
  • Enya - 35 - Rear Bearing 12-24-6mm
  • Enya - 35 Heli - Rear Bearing 12-24-6mm
  • Fitzpatrick - 61 - Front Bearing
  • Force - 21 - Rear Bearing 12-24-6mm
  • HB - 25 - 2 Stroke - Rear Bearing 12-24-6mm
  • HP - 21 - Rear Bearing 12-24-6mm
  • HP - 40 - Rear Bearing 12-24-6mm
  • Irvine - 15 New Turbo - 2 Stroke - Rear Bearing 12-24-6mm
  • Irvine - 15 Old - 2 Stroke - Rear Bearing 12-24-6mm
  • K.B - 11 Inboard Old - Front Bearing
  • K.B - 11 New Inboard - Front Bearing
  • K.B - 21 - 3.5 Aircraft - Rear Bearing 12-24-6mm
  • K.B - 3.5 Outboard Old - Rear Bearing 12-24-6mm
  • K.B - 45 New Inboard - Rear Bearing 12-24-6mm
  • K.B - 6.5 -7.5 Old Inboard - Rear Bearing 12-24-6mm
  • K.B - 67 -82 Marine - Front Bearing
  • K.B - 67 -82 New - Front Bearing
  • Magnum - 25 - 2 Stroke - Rear Bearing 12-24-6mm
  • Magnum - 36 - 2 Stroke - Rear Bearing 12-24-6mm
  • MVVS - 21 - Rear Bearing 12-24-6mm
  • Nelson - 15 - Rear Bearing 12-24-6mm
  • OPS - 21 -40 -45 - Rear Bearing 12-24-6mm
  • OPS - 45 - Rear Bearing 12-24-6mm
  • OS - 20 4-C - Rear Bearing 12-24-6mm
  • OS - 25 F ABC RC W-Muffler - Rear Bearing 12-24-6mm
  • OS - 25 FR RC W-Muffler - Rear Bearing 12-24-6mm
  • OS - 25 FX - 2 Stroke - Rear Bearing 12-24-6mm
  • OS - 25 VF ABC RC - Rear Bearing 12-24-6mm
  • OS - 25 VF-DF ABC RC - Rear Bearing 12-24-6mm
  • OS - 28 F RC W-Muffler - Rear Bearing 12-24-6mm
  • OS - 28 F-H ABC RC - Rear Bearing 12-24-6mm
  • OS - 28 F-H RC W-Muffler - Rear Bearing 12-24-6mm
  • OS - 32 F ABC RC W-Muffler - Rear Bearing 12-24-6mm
  • OS - 32 F-C RC - Rear Bearing 12-24-6mm
  • OS - 32 F-HS RC W-Cone - Rear Bearing 12-24-6mm
  • OS - 32 FX - 2 Stroke - Rear Bearing 12-24-6mm
  • OS - 32 SX-H Heli - 2 Stroke - Rear Bearing 12-24-6mm
  • OS - 32 SX-HX Heli - 2 Stroke - Rear Bearing 12-24-6mm
  • OS - 61 FX - 2 Stroke - Front Bearing
  • OS - 61 SF-HS and RF-HS RC - Rear Bearing 12-24-6mm
  • OS - FS26S - 4 Stroke - Rear Bearing 12-24-6mm
  • OS - FS40 - 4 Stroke - Rear Bearing 12-24-6mm
  • OS - FS40-M - 4 Stroke - Rear Bearing 12-24-6mm
  • OS - FS40S - 4 Stroke - Rear Bearing 12-24-6mm
  • Picco - 15 - 2 Stroke - Rear Bearing 12-24-6mm
  • Picco - 40 - 2 Stroke - Rear Bearing 12-24-6mm
  • Picco - 40 Pylon - 2 Stroke - Rear Bearing 12-24-6mm
  • Picco - 45 - 2 Stroke - Rear Bearing 12-24-6mm
  • Picco - 45 Pylon - 2 Stroke - Rear Bearing 12-24-6mm
  • Picco - 67 EXR Series II - 2 Stroke - Front Bearing
  • Picco - 90 Hydro - 2 Stroke - Front Bearing
  • Rossi - 15 Blackhead - Rear Bearing 12-24-6mm
  • Royal - 25 -28 - Rear Bearing 12-24-6mm
  • Saito - 40 4C - 45 4C - 50 - Rear Bearing 12-24-6mm
  • Saito - 90 -100 Twin - Rear Bearing 12-24-6mm
  • Super Tigre - G29 - Rear Bearing 12-24-6mm
  • Super Tigre - X21 - Rear Bearing 12-24-6mm
  • Thunder Tiger - 21 O-B - 2 Stroke - Rear Bearing 12-24-6mm
  • Thunder Tiger - 25 Pro - 2 Stroke - Rear Bearing 12-24-6mm
  • Thunder Tiger - 36 Pro - 2 Stroke - Rear Bearing 12-24-6mm
  • Thunder Tiger - 36H - 2 Stroke - Rear Bearing 12-24-6mm
  • Thunder Tiger - 39H - 2 Stroke - Rear Bearing 12-24-6mm
  • Veco - 19 - Rear Bearing 12-24-6mm
  • Webra - 32 Heli - Rear Bearing 12-24-6mm

Cross References

  • WIB 61901-2RSF-T9H-C3WWAF2
  • WIB 61901-RSF-T9H-C3WWAF2
  • BOCA 6901-T9H-2RS-C3
  • BOCA 6901-T9H-RS-C3
  • 61901RSFT9HC3WWAF2
  • 6901T9HRSC3
  • 6901 Basic Size Ref
View full details

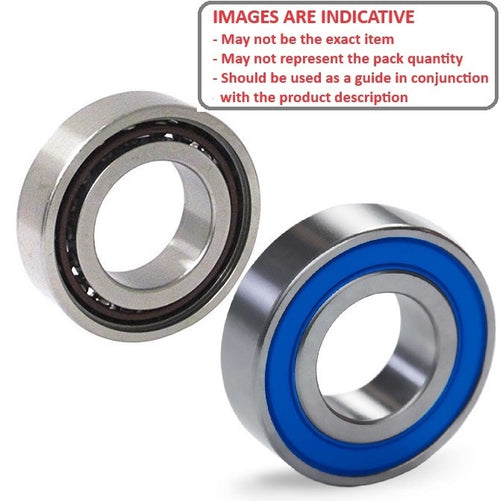

6901-T9H-RB-ACO-ECODiagram6901-T9H-RB-ACO-ECOImage
