Miniature Bearings Australia
OW-0120-0180-0160-R - Datasheet
MBA
Category Information
Bearings - One Way - RollerRoller One Way Bearings. Roller Clutch Bearings rotate in one direction only.
- One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
- Commonly used in over-runnung, or backstopping applications.
- The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
- Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.
Product Data

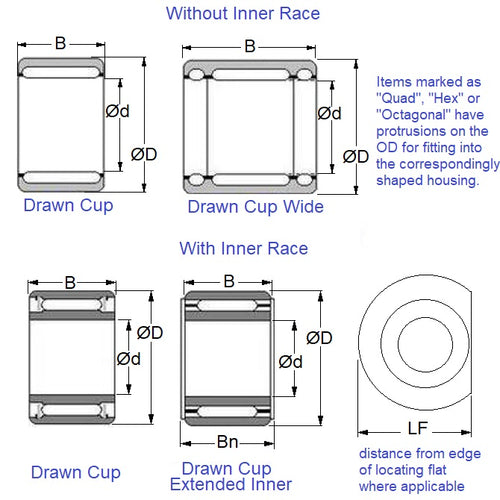

- ID (d)
:
12.000
mm
(Equiv. 0.472 in.) - OD (D)
18.000
mm
(Equiv. 0.709 in.) - Width (B)
16.000
mm
(Equiv. 0.63 in.) - Overrun Limiting Speed 19000 RPM

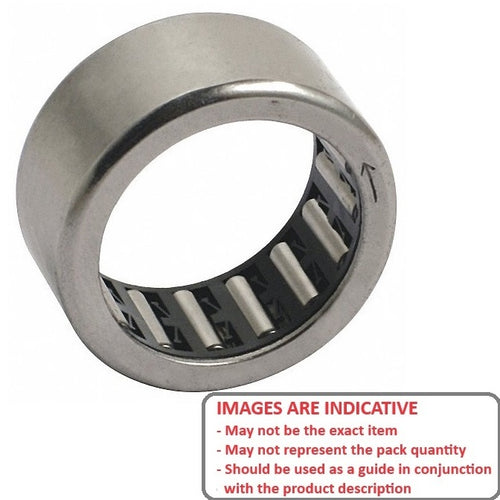

- Type Drawn Cup Standard
- Bearings Material Steel
- Max Torque 12.2 N.m
- Cage Material Steel
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Align - Trex 600 CF - Roller Clutch Bearing 12-18-16mm
- Century - Falcon 46 - Roller Clutch Bearing 12-18-16mm
- Century - Hawk II - Roller Clutch Bearing 12-18-16mm
- Century - Phoenix 52-4-C - Roller Clutch Bearing 12-18-16mm
- GMP - Cobra - 6260 Roller Clutch Bearing
- GMP - Competition - 6260 Roller Clutch Bearing
- GMP - Cricket - 6260 Roller Clutch Bearing
- GMP - Elite Rotor Head - 6260 Roller Clutch Bearing
- GMP - Legend - 6260 Roller Clutch Bearing
- GMP - Rebel - 6260 Roller Clutch Bearing
- GMP - Stork - 6260 Roller Clutch Bearing
- Kyosho - CONCEPT 30 SR-T - Roller Clutch Bearing 12-18-16mm
- Kyosho - Miscellaneous Parts to suit - H6024 Roller Clutch Bearing
Cross References
- GMP 6260
- 6392K44
- Torrington FC-12
- INA HF1216
- S99NH3MURC1216
- FC12
